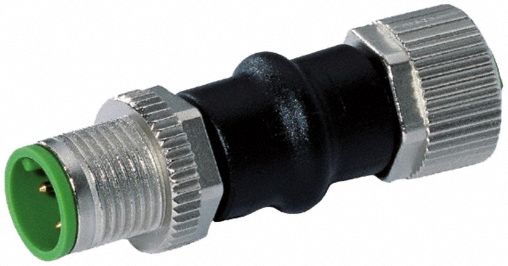

Murrelektronik 3G-OTH-08607 — Technical Specifications
The MURRELEKTRONIK Circular Connector is an M12 4-Pole Male x M12 4-Pole Female gender adapter, A-coded for DC power and signal applications. It features a straight, cable-to-cable mounting style with M12 male and female threads, a PUR housing, and an IP67 rating. The connector is rated for 125V and uses pin and socket connection type.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | A Coded, DC Power/Signal |
| Brand | MURRELEKTRONIK |
| Coding | A |
| IP Rating | IP67 |
| Application | DC Power |
| Thread Size | M12 Male x M12 Female |
| Mounting Type | Cable to Cable |
| Mounting Style | Cable-to-Cable Adapter |
| Voltage Rating | 125V |
| Connection Type | Pin and Socket |
| Housing Material | PUR |
| Connector Body Type | Male x Female |
| Connector Application | A-Coded for Signal, Low-Power, and Gigabit Data |
| Connector Orientation | Straight |
| Manufacturer Part Number | 7000-41243-0000000 |
| Adapter Pole Configuration | M12 4-Pole Male x M12 4-Pole Female |
