Murrelektronik 3G-OTH-08445 — Technical Specifications

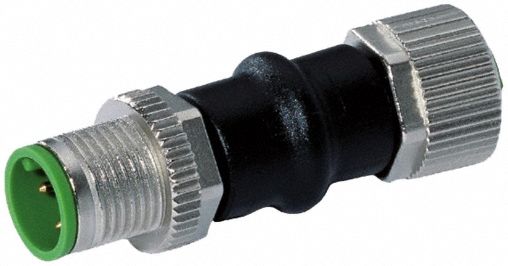

The MURRELEKTRONIK Circular Connector is an M12 4-Pole Male x M12 4-Pole Female gender adapter, A-coded for signal, low-power, and Gigabit data applications. This cable-to-cable adapter features an IP67 rating, 800V voltage rating, and a zinc die-cast housing with M12 male and female threads. It is designed for Cube67 Diagnostic systems.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | A Coded, Cube67 Diagnostic |
| Brand | MURRELEKTRONIK |
| Coding | A |
| IP Rating | IP67 |
| Application | Cube67 Diagnostic |
| Thread Size | M12 Male x M12 Female |
| Mounting Type | Cable to Cable |
| Mounting Style | Cable-to-Cable Adapter |
| Voltage Rating | 800V |
| Connection Type | Pin and Socket |
| Housing Material | Zinc Die-Cast |
| Connector Body Type | Male x Female |
| Connector Application | A-Coded for Signal, Low-Power, and Gigabit Data |
| Connector Orientation | Straight |
| Manufacturer Part Number | 7000-41241-0000000 |
| Adapter Pole Configuration | M12 4-Pole Male x M12 4-Pole Female |
