Murrelektronik 3G-OTH-50718 — Technical Specifications

Name: Murrelektronik 3G-OTH-50718 MURRELEKTRONIK Control Cable: 24 AWG, 3 Conductors, 328 ft, PVC Jacket, 300 V (MPN 7000-C0101-0100000). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 5 x OD; Minimum Bend Radius Factor - Flexible: 10 x OD; Includes Ground: No; Resistance Properties: Gasoline Resistant; Standards: CSA; Product Type: Control Cable.
Brand: Murrelektronik

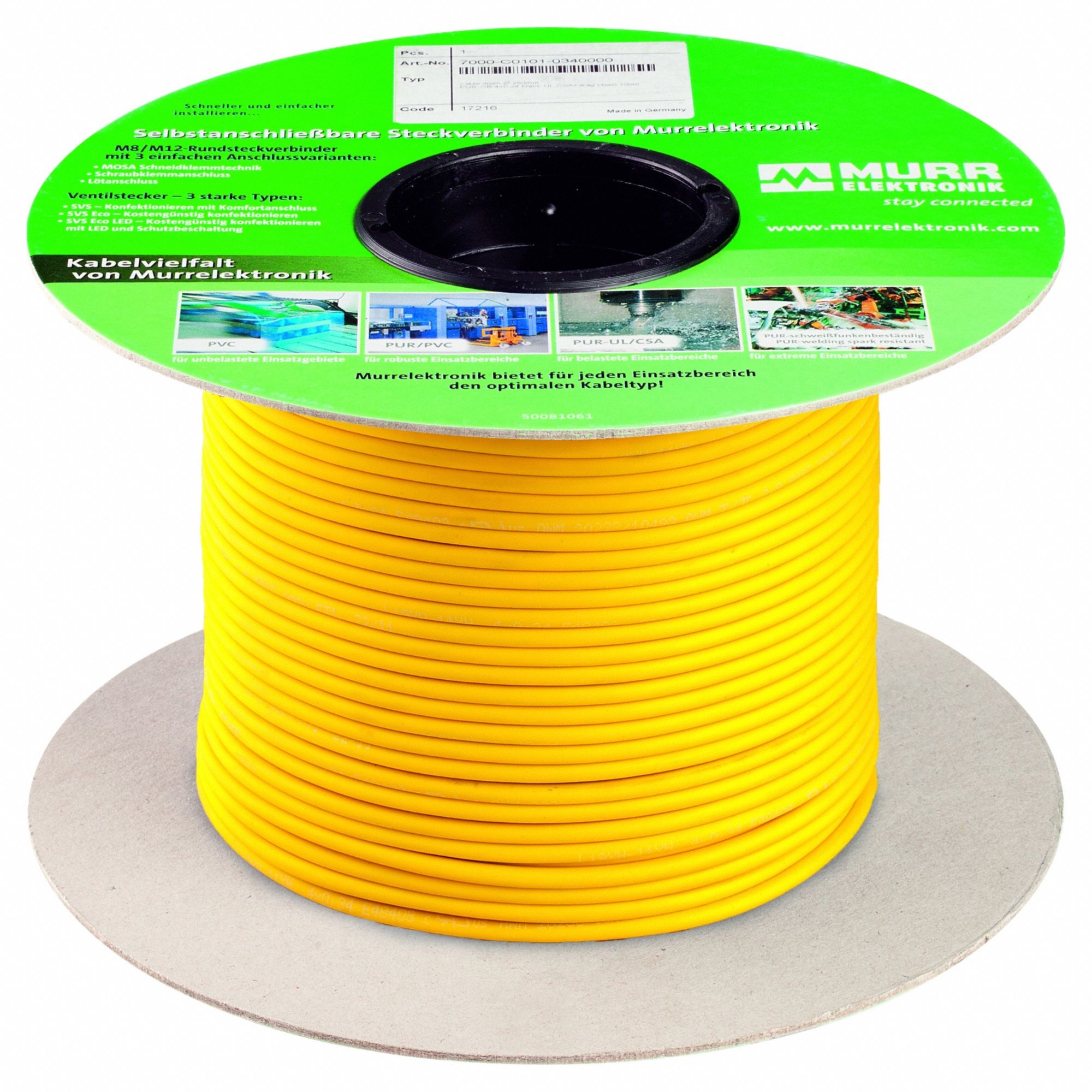

The MURRELEKTRONIK Control Cable (MPN 7000-C0101-0100000) is a 24 AWG, 3-conductor continuous flexing control cable with a PVC jacket rated for 300 V. It features single copper conductors, a 328 ft length, and is gasoline resistant with CSA standards. The cable has a minimum bend radius factor of 5 x OD for fixed installation and 10 x OD for flexible applications, and does not include a ground conductor.

View Product & Quote

Technical Specifications

Parameter	Value
Brand	MURRELEKTRONIK
Standards	CSA
Cable Series	Murr Bulk Cable
Product Type	Control Cable
Includes Ground	No
Conductor Material	Copper
Resistance Properties	Gasoline Resistant
Conductor Configuration	Single
Manufacturer Part Number	7000-C0101-0100000
Minimum Bend Radius Factor - Fixed	5 x OD
Minimum Bend Radius Factor - Flexible	10 x OD
