Murrelektronik 3G-OTH-50969 — Technical Specifications

Name: Murrelektronik 3G-OTH-50969 Cordset: M12 Male Straight X Bare Wire, 5 Pins, Yellow, TPE, 10 m Cable Lg, 12 A Max Current (A) (MPN 7700-P4201-U0D1000). Key specifications — Cable Jacket Color: Yellow; End 1 Gender: Male; End 1 Mounting Orientation: Straight; End 2 Connection Type: Bare Wire; IP Rating: IP66K; Brand: MURRELEKTRONIK; Wire Size: 16 AWG; Cable Jacket Material: TPE.
Brand: Murrelektronik

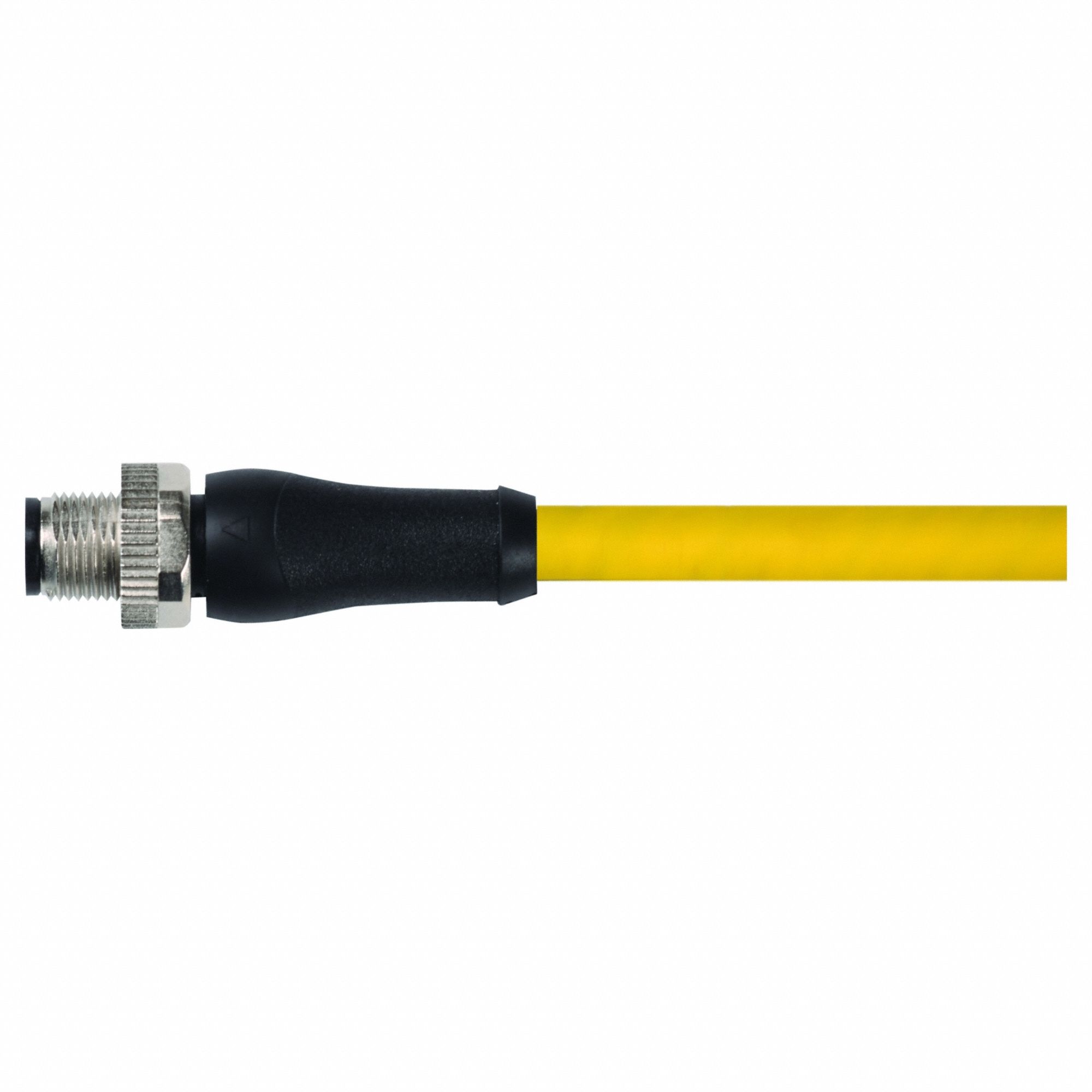

The MURRELEKTRONIK Cordset (SKU 812TP8, MPN 7700-P4201-U0D1000) is a single-ended cordset with a TPE jacket for heaviest-duty applications. It features an M12 male straight connector on one end and bare wire on the other, with 5 pins, a yellow TPE jacket, 16 AWG wire size, and an IP66K rating. The cable length is 10 m, with a maximum current of 12 A.

View Product & Quote

Technical Specifications

Parameter	Value
Pins	5
Type	Yellow, TPE
Brand	MURRELEKTRONIK
Cable Lg	10 m
IP Rating	IP66K
Wire Size	16 AWG
End 1 Gender	Male
Max Current (A)	12 A
Cable Jacket Color	Yellow
Cable Jacket Material	TPE
End 1 Connection Type	M12
End 2 Connection Type	Bare Wire
Manufacturer Part Number	7700-P4201-U0D1000
End 1 Mounting Orientation	Straight
