Murrelektronik 3G-OTH-51896 — Technical Specifications

Name: Murrelektronik 3G-OTH-51896 Cordset: M12 Female Straight X Bare Wire, 5 Pins, Gray, PUR, 1 m Cable Lg, 4 A Max Current (A) (MPN 7000-12241-2350100). Key specifications — Cable Jacket Color: Gray; End 1 Gender: Female; End 1 Mounting Orientation: Straight; End 2 Connection Type: Bare Wire; IP Rating: IP66K; Brand: MURRELEKTRONIK; Wire Size: 22 AWG; Cable Jacket Material: PUR.
Brand: Murrelektronik

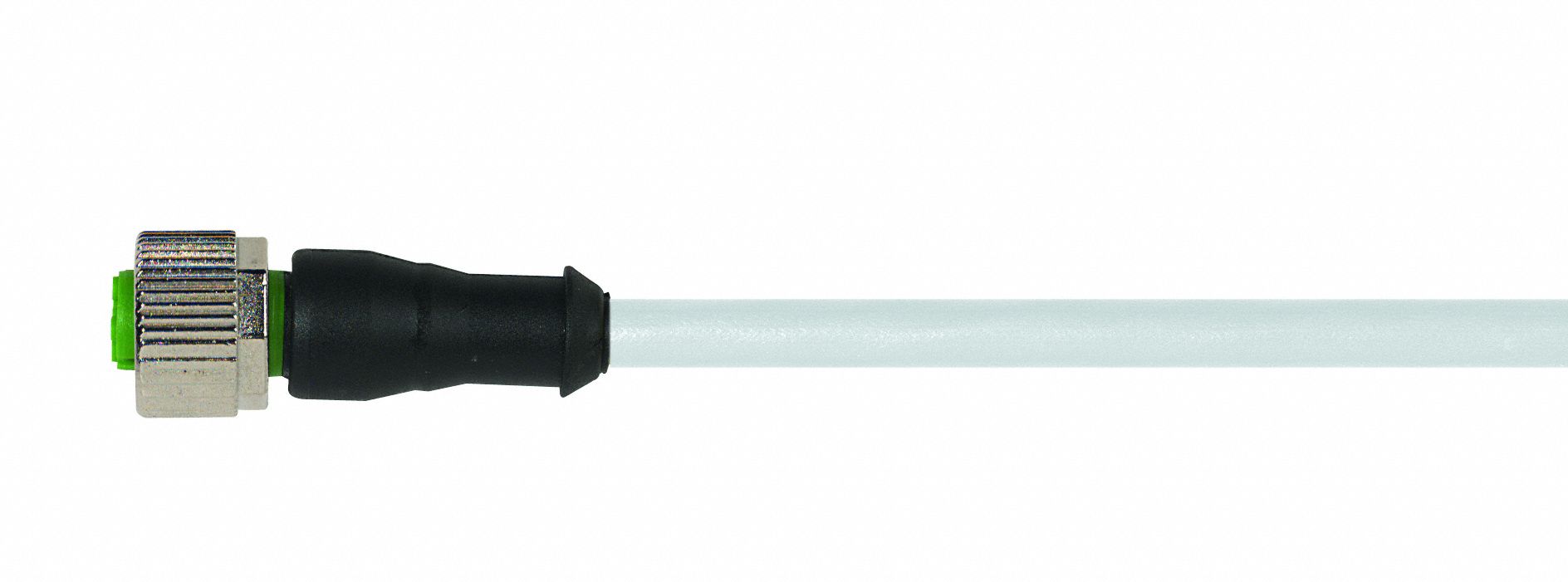

The MURRELEKTRONIK Cordset (SKU 812R24, MPN 7000-12241-2350100) is a single-ended cordset with a PUR jacket for twisting applications. It features an M12 female straight connector on one end and bare wire on the other, with 5 pins, 22 AWG wire size, and a 1 m cable length. Rated IP66K, it supports a maximum current of 4 A.

View Product & Quote

Technical Specifications

Parameter	Value
Pins	5
Type	Gray, PUR
Brand	MURRELEKTRONIK
Cable Lg	1 m
IP Rating	IP66K
Wire Size	22 AWG
End 1 Gender	Female
Max Current (A)	4 A
Cable Jacket Color	Gray
Cable Jacket Material	PUR
End 1 Connection Type	M12
End 2 Connection Type	Bare Wire
Manufacturer Part Number	7000-12241-2350100
End 1 Mounting Orientation	Straight
