Multifan 3G-OTH-80168 — Technical Specifications

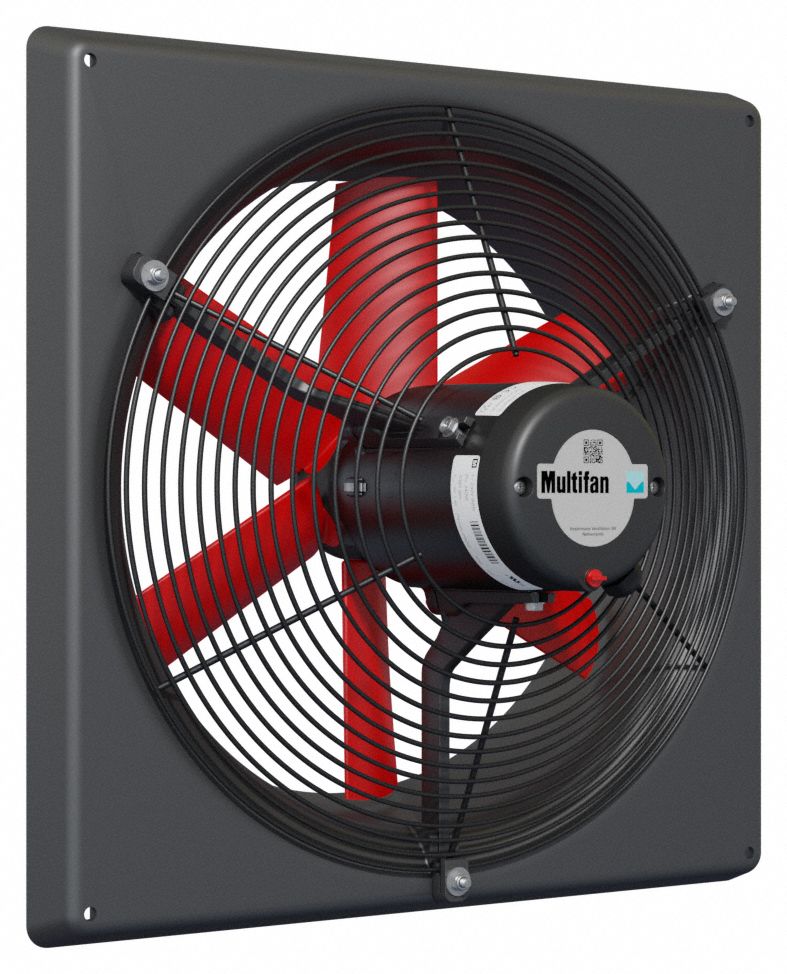

The MULTIFAN V4E40K1M71100 is a corrosion-resistant direct-drive panel exhaust fan with a 16-inch blade, 1/4 hp, and 3,000 cfm at 240V AC, 1 ph. It features a fiberglass frame, cast construction, a permanent split capacitor motor with Class F insulation, and a totally enclosed air-over motor enclosure. The fan is assembled with intake guards and has variable speed capability.
Technical Specifications
| Parameter | Value |
|---|---|
| AC | 240V |
| Type | 1/4 hp, 3,000 cfm, 1 ph, Totally Enclosed |
| Blade | 16 in |
| Brand | MULTIFAN |
| Assembled | Assembled |
| Guard Type | Intake |
| Motor Type | Permanent Split Capacitor |
| Frame Material | Fiberglass |
| Motor Enclosure | Totally Enclosed Air Over |
| Enclosure Design | Totally Enclosed Motor |
| Motor Insulation | Class F |
| Number Of Speeds | Variable |
| Nameplate Voltage | 240V AC |
| Guard Type Subheads | With Intake Guards |
| Method Of Construction | Cast |
| Manufacturer Part Number | V4E40K1M71100 |
