Moline Bearing 3G-OTH-103173 — Technical Specifications

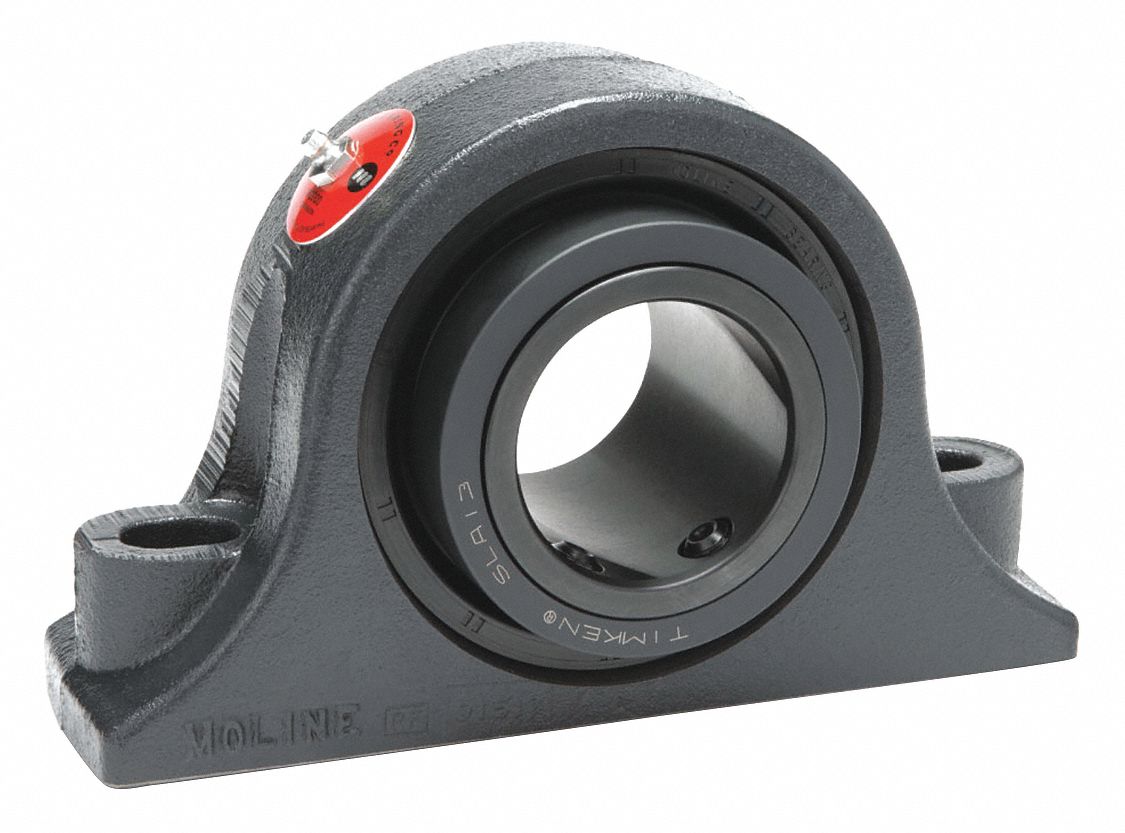

The MOLINE BEARING Pillow Block Bearing (MPN 19121211) is an expansion-type pillow block spherical roller bearing with a 2 11/16 in bore and a 3 1/4 in shaft height. It is constructed from cast iron and has a maximum speed of 1,600 RPM, with a mounting bolt size of 3/4 in.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Expansion, Cast Iron |
| Brand | MOLINE BEARING |
| Shaft Ht | 3 1/4 in |
| Maximum Speed | 1,600 RPM |
| Mounting Bolt Size | 3/4 in |
| Manufacturer Part Number | 19121211 |
