Metz Connect 3G-OTH-51576 — Technical Specifications

Name: Metz Connect 3G-OTH-51576 Sensor Cable: M12 Male Straight X Free End, 8 Pins, Black, PUR, 5 m Cable Lg, 2 A Max Current (A) (MPN 142MEA10050). Key specifications — Cable Jacket Color: Black; End 1 Gender: Male; End 1 Mounting Orientation: Straight; End 2 Connection Type: Free End; IP Rating: IPX7; Brand: METZ CONNECT; Wire Size: 22 AWG/32 AWG; Cable Jacket Material: PUR.
Brand: Metz Connect

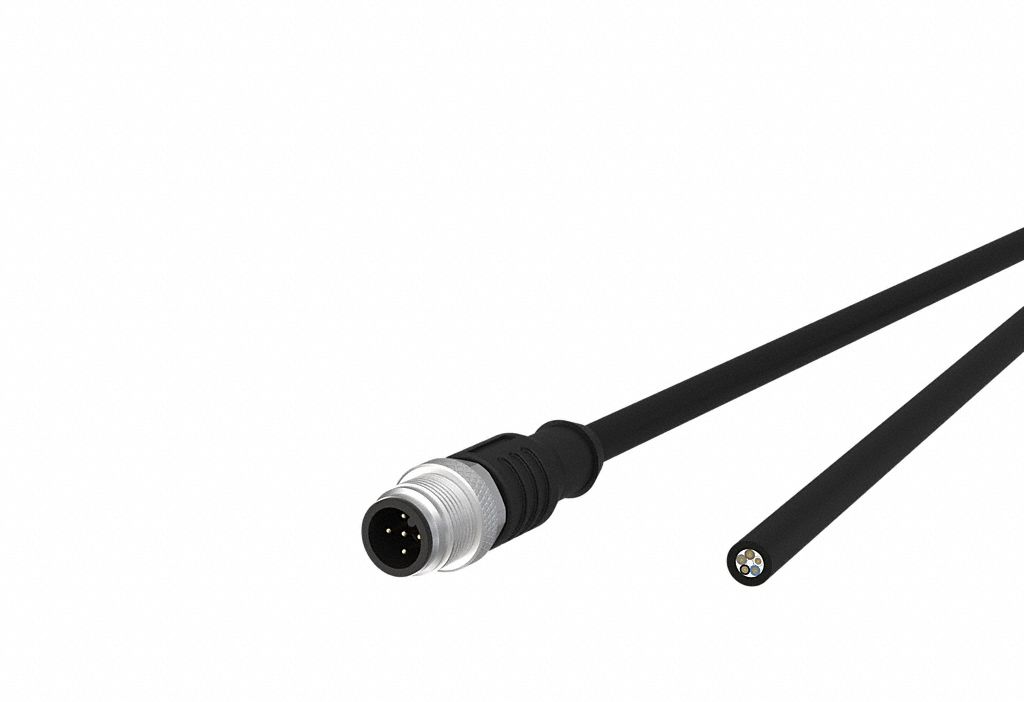

The METZ CONNECT Sensor Cable (SKU 802LH3, MPN 142MEA10050) is a single-ended cordset with a PUR jacket designed for twisting applications. It features an M12 male straight connector on one end and a free end on the other, with 8 pins, a 5 m cable length, and a 2 A max current. The cable has a black PUR jacket, wire sizes of 22 AWG/32 AWG, and an IPX7 rating.

View Product & Quote

Technical Specifications

Parameter	Value
Pins	8
Type	Black, PUR
Brand	METZ CONNECT
Cable Lg	5 m
IP Rating	IPX7
Wire Size	22 AWG/32 AWG
End 1 Gender	Male
Max Current (A)	2 A
Cable Jacket Color	Black
Cable Jacket Material	PUR
End 1 Connection Type	M12
End 2 Connection Type	Free End
Manufacturer Part Number	142MEA10050
End 1 Mounting Orientation	Straight
