Metz Connect 3G-OTH-52560 — Technical Specifications

Name: Metz Connect 3G-OTH-52560 Sensor Cable: M12 Female Straight X Free End, 4 Pins, Black, PUR, 5 m Cable Lg, 4 A Max Current (A) (MPN 142MCA10050). Key specifications — Cable Jacket Color: Black; End 1 Gender: Female; End 1 Mounting Orientation: Straight; End 2 Connection Type: Free End; IP Rating: IPX5; Brand: METZ CONNECT; Wire Size: 22 AWG/42 AWG; Cable Jacket Material: PUR.
Brand: Metz Connect

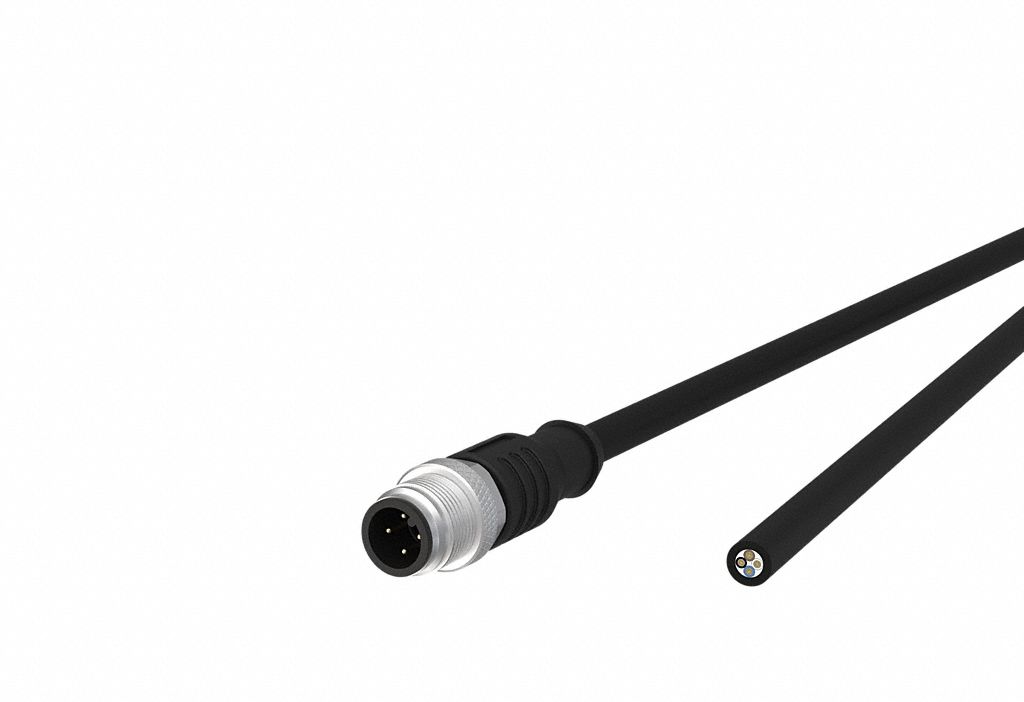

The METZ CONNECT Sensor Cable (SKU 802LF3, MPN 142MCA10050) is a single-ended cordset with a PUR jacket designed for twisting applications. It features an M12 female straight connector on one end and a free end on the other, with 4 pins, a 5 m cable length, a wire size of 22 AWG/42 AWG, and an IPX5 rating. The cable supports a maximum current of 4 A.

View Product & Quote

Technical Specifications

Parameter	Value
Pins	4
Type	Black, PUR
Brand	METZ CONNECT
Cable Lg	5 m
IP Rating	IPX5
Wire Size	22 AWG/42 AWG
End 1 Gender	Female
Max Current (A)	4 A
Cable Jacket Color	Black
Cable Jacket Material	PUR
End 1 Connection Type	M12
End 2 Connection Type	Free End
Manufacturer Part Number	142MCA10050
End 1 Mounting Orientation	Straight
