Metz Connect 3G-OTH-10144 — Technical Specifications

Name: Metz Connect 3G-OTH-10144 METZ CONNECT Module: Cat6A, Data/HDBaseT/Power, 8 Poles, Straight, Cable, Female Straight, Female (MPN 130B11-E). Key specifications — Housing Material: Zinc Die-Cast; Mounting Type: Cable; Connector Color: Metallike; Performance Category: Cat6A; Application: Power; Connection Type: Insulation Displacement; Connector Gender: Female; Connector Orientation: Straight.
Brand: Metz Connect

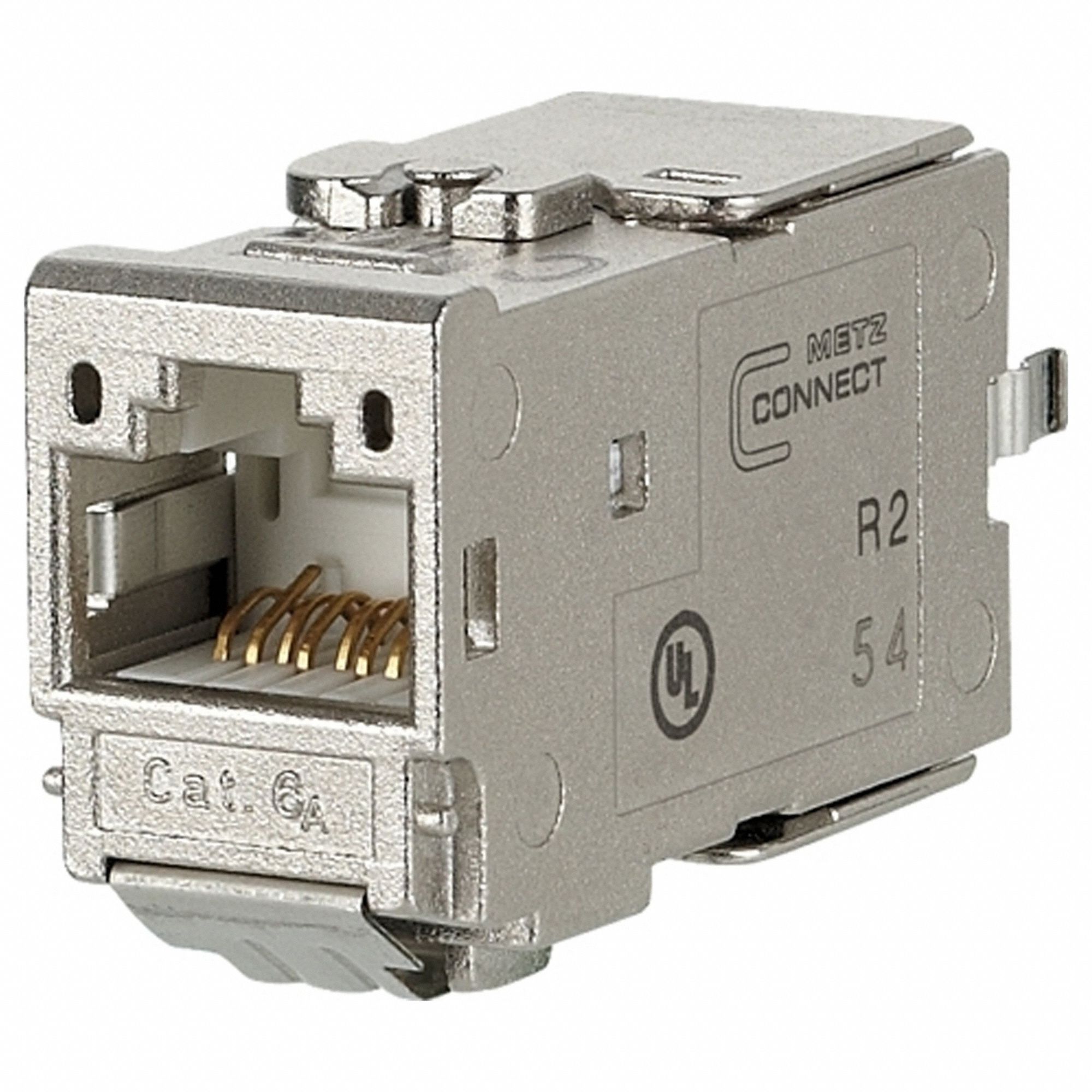

The METZ CONNECT Module: Cat6A is a device-side RJ45 connector and coupler designed for Power applications. This female, straight connector features a zinc die-cast housing and a metallike finish, utilizing insulation displacement connection for cable mounting. It is rated as Cat6A performance and is identified by manufacturer part number 130B11-E.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Data/HDBaseT/Power, Straight, Cable, Female Straight, Female
Poles	8
Application	Power
Mounting Type	Cable
Connection Type	Insulation Displacement
Connector Color	Metallike
Connector Gender	Female
Housing Material	Zinc Die-Cast
RJ45 Connector Type	RJ45 / Cat6A Module
Performance Category	Cat6A
Connector Orientation	Straight
Manufacturer Part Number	130B11-E
