Mersen 3G-OTH-23041 — Technical Specifications

Name: Mersen 3G-OTH-23041 MERSEN Surge Protection Device: Three Phase, 480V AC Wye, 3 Poles, 4 Wires, L-L/L-N, 320/640 V AC (MPN STP480Y07). Key specifications — Voltage: 480V AC Wye; Number of Wires: 4 Wires; Modes of Protection: L-N; Max. Continuing Operating Voltage: 320/640 V AC; Voltage Protection Rating: 1500V (L-N); Short Circuit Current Rating: 200kA; Filtering: No; Enclosure Material: Polyethylene Terephthalate.
Brand: Mersen

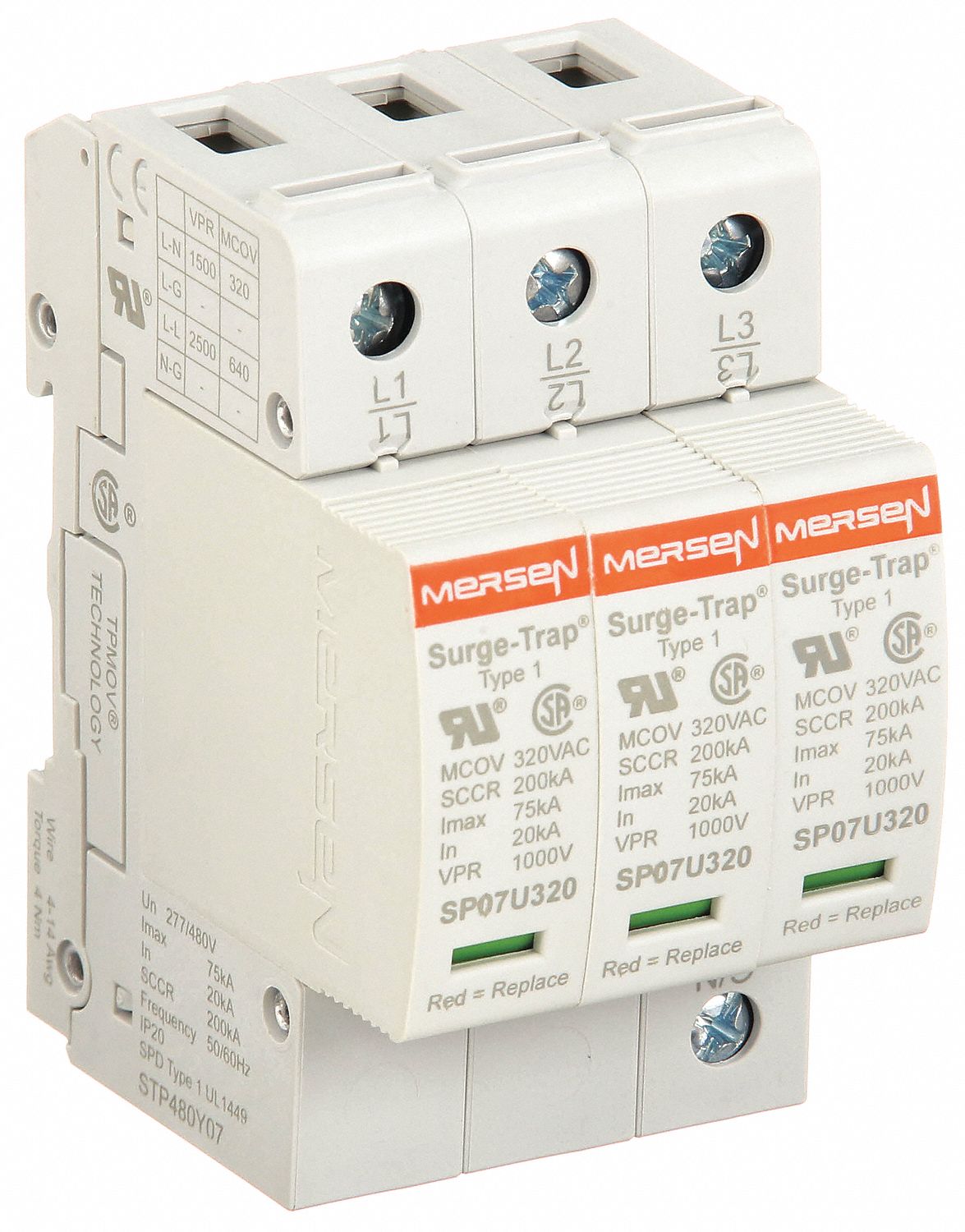

The MERSEN STP480Y07 is a three-phase, DIN-rail internal-mount surge protection device (SPD) for 480V AC Wye systems with 4 wires and 3 poles. It provides L-N mode protection, with a voltage protection rating of 1500V (L-N), a short circuit current rating of 200kA, and a max. continuing operating voltage of 320/640 V AC. The enclosure is made of polyethylene terephthalate, and the unit has no filtering.

View Product & Quote

Technical Specifications

Parameter	Value
AC	320/640 V
Type	L-L/L-N
Brand	MERSEN
Poles	3
Wires	4
AC Wye	480V
Voltage	480V AC Wye
Filtering	No
Mounting Style	DIN-Rail
Number Of Wires	4 Wires
Enclosure Material	Polyethylene Terephthalate
Modes Of Protection	L-N
Manufacturer Part Number	STP480Y07
Voltage Protection Rating	1500V (L-N)
Short Circuit Current Rating	200kA
Max. Continuing Operating Voltage	320/640 V AC
