Mercoid 3G-OTH-177217 — Technical Specifications

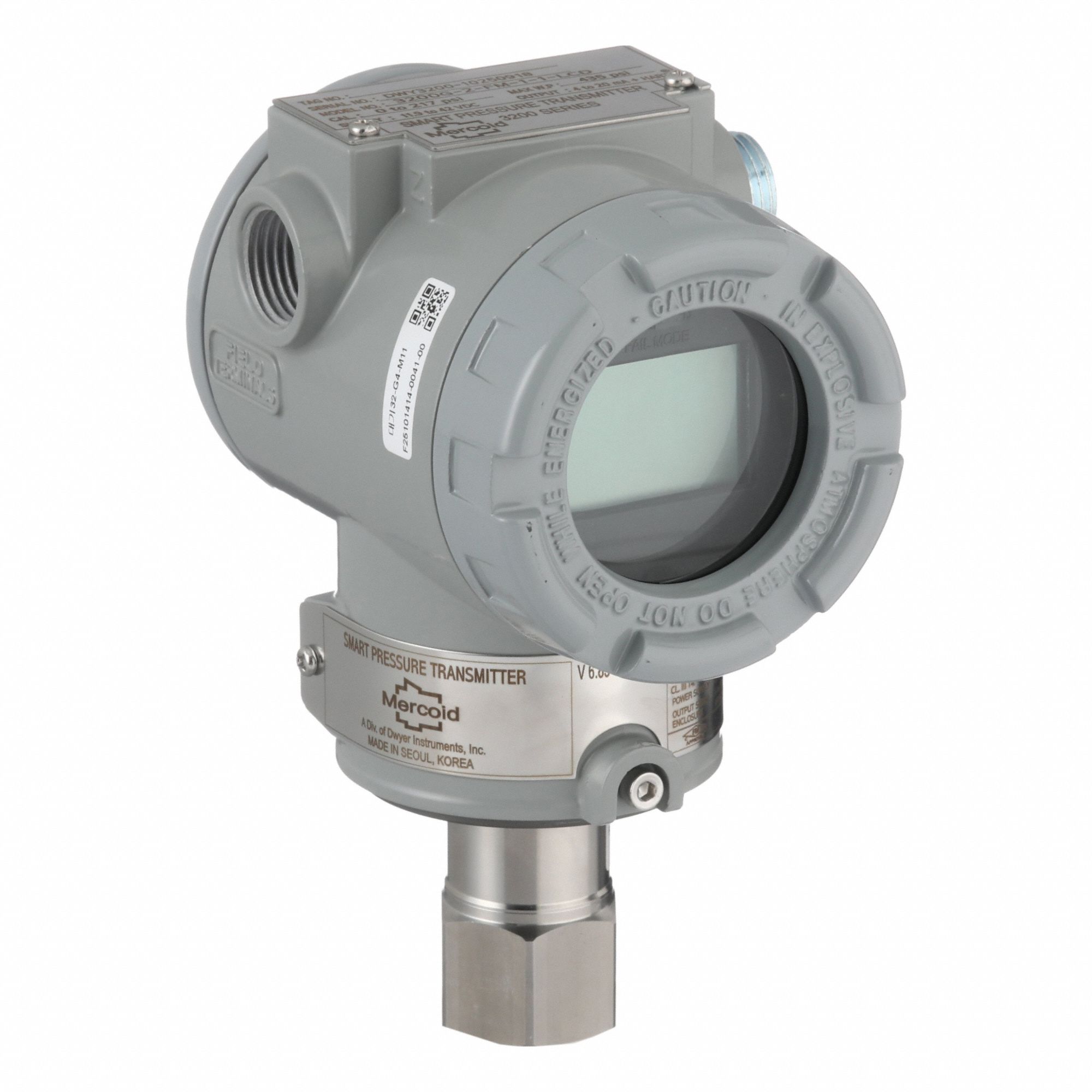

The MERCOID 3200G-2-FM-1-1-LCD is an explosion-proof indicating transmitter with a digital display, covering a range of -14.5 psi to 217 psi. It outputs 4 to 20mA DC with HART Communication, powered by 11.9 to 45 V DC, and offers ±0.075% of Full Scale accuracy. The unit features an aluminum housing with 17-4PH Stainless Steel/316 Stainless Steel fittings, NPT process connection, and is rated IP66/NEMA 4X and Intrinsically Safe.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | 4 to 20mA DC / HART Comm, Screw Terminals, IP66 /4X |
| Brand | MERCOID |
| Output | 4 to 20mA DC / HART Communication |
| Series | 3200G |
| Accuracy | ±0.075% of Full Scale |
| IP Rating | IP66 |
| NEMA Rating | 4X |
| Display Type | Digital |
| Product Type | Explosion-Proof-Rated Transmitter with Display |
| Power Required | 11.9 to 45 V DC |
| Fitting Material | 17-4PH Stainless Steel/316 Stainless Steel |
| Housing Material | Aluminum |
| Intrinsically Safe | Intrinsically Safe |
| Process Connection Type | NPT |
| Manufacturer Part Number | 3200G-2-FM-1-1-LCD |
