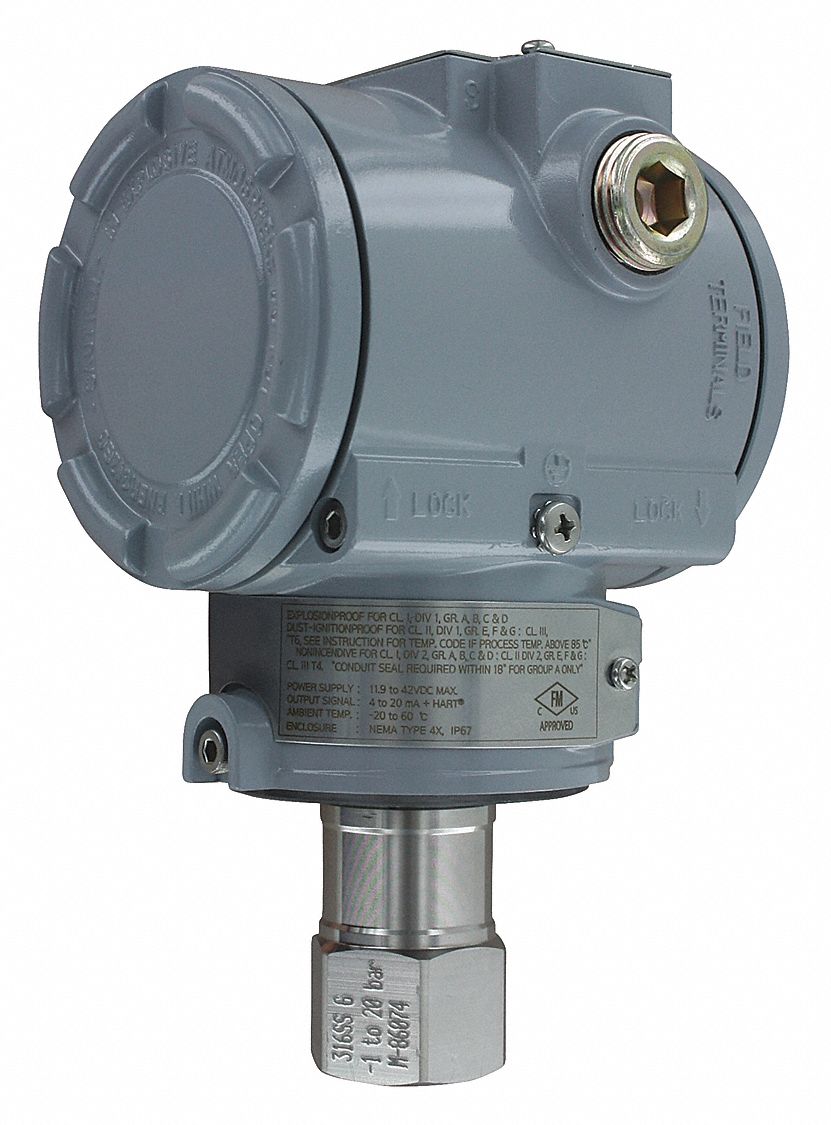

Mercoid 3G-OTH-175625 — Technical Specifications
The MERCOID 3200G Series Explosion-Proof-Rated Transmitter (SKU 13A898) measures compound pressure from 0 psi to 10,000 psi with ±0.075% of Full Scale accuracy. It features a 4 to 20mA DC / HART Communication output, an aluminum housing with IP66 and NEMA 4X ratings, and an NPT process connection. This unit is not specified as intrinsically safe and does not include a NIST-traceable calibration certificate.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | 4 to 20mA DC / HART Comm, Screw Terminals, IP66 /4X |
| Brand | MERCOID |
| Output | 4 to 20mA DC / HART Communication |
| Series | 3200G |
| Accuracy | ±0.075% of Full Scale |
| IP Rating | IP66 |
| NEMA Rating | 4X |
| Product Type | Explosion-Proof-Rated Transmitter |
| Housing Material | Aluminum |
| Intrinsically Safe | Not Specified Intrinsically Safe |
| Pressure Type Measured | Compound |
| Process Connection Type | NPT |
| Manufacturer Part Number | 3200G-4-FM-1-1 |
| NIST Traceable Certificate | No NIST-Traceable Calibration Certificate Included |
