Mercoid 3G-OTH-175624 — Technical Specifications

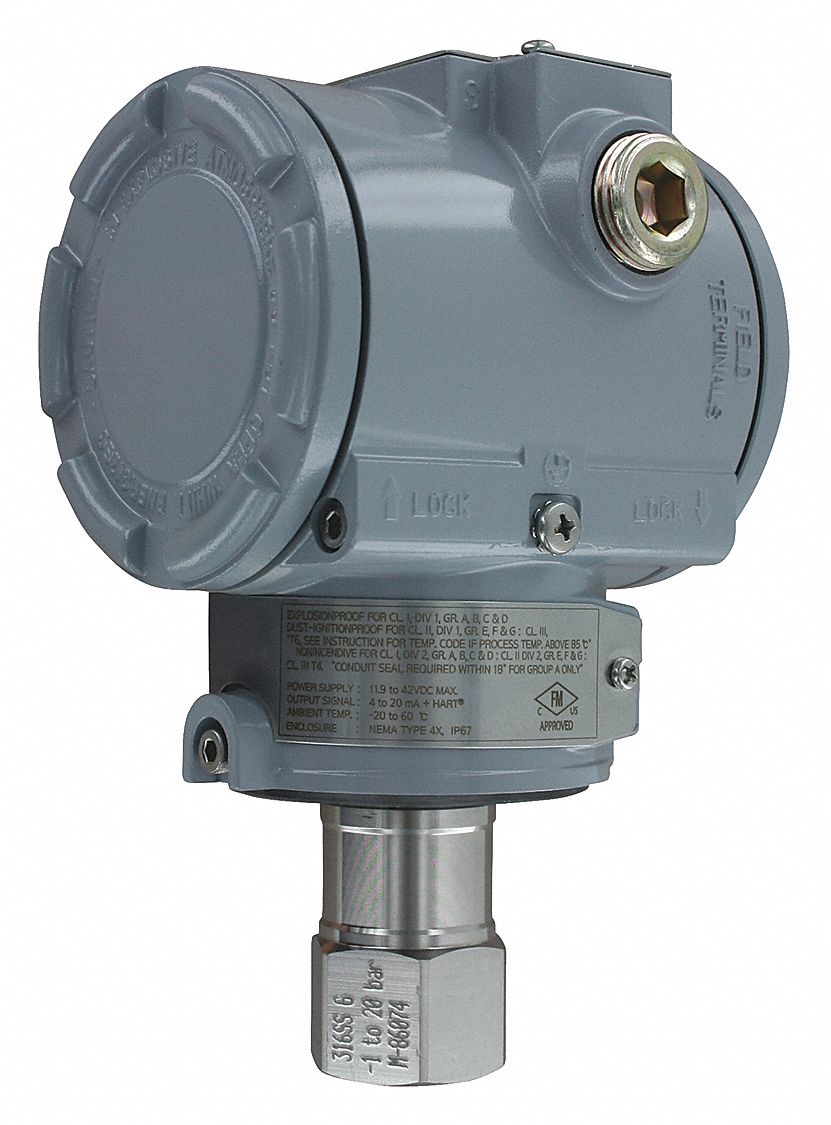

The MERCOID 3200G Series Pressure Transmitter (SKU 13A897) is an explosion-proof-rated transmitter with a conduit connection, featuring a 0 psi to 2,000 psi compound pressure range. It provides a 4 to 20mA DC output with HART Communication, an accuracy of ±0.075% of Full Scale, and an aluminum housing rated IP66 and NEMA 4X. The unit uses an NPT process connection and is not specified as intrinsically safe.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | 4 to 20mA DC / HART Comm, Screw Terminals, IP66 /4X |
| Brand | MERCOID |
| Output | 4 to 20mA DC / HART Communication |
| Series | 3200G |
| Accuracy | ±0.075% of Full Scale |
| IP Rating | IP66 |
| NEMA Rating | 4X |
| Product Type | Explosion-Proof-Rated Transmitter |
| Housing Material | Aluminum |
| Intrinsically Safe | Not Specified Intrinsically Safe |
| Pressure Type Measured | Compound |
| Process Connection Type | NPT |
| Manufacturer Part Number | 3200G-3-FM-1-1 |
| NIST Traceable Certificate | No NIST-Traceable Calibration Certificate Included |
