Mepco 3G-OTH-71342 — Technical Specifications

Name: Mepco 3G-OTH-71342 Steam Trap: Cast Iron, 3/4 in FNPT, 2,060 lb/hr, 200 psi Max., 450°F Max., Strainer Not Included (MPN IB12-3-30G). Key specifications — Installation Orientation: Horizontal; Brand: MEPCO; Configuration: In-line.
Brand: Mepco

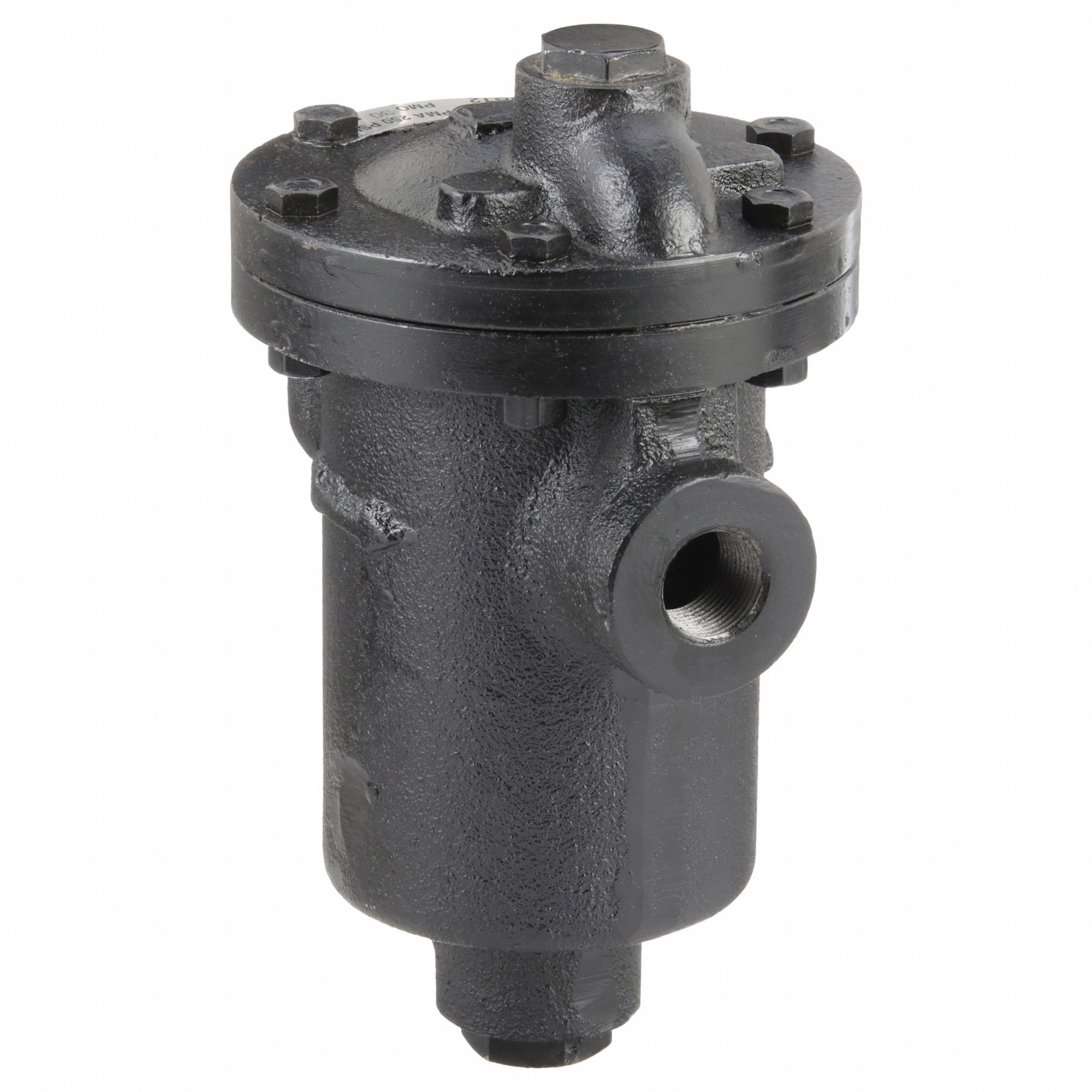

The MEPCO IB12-3-30G is a standard inverted-bucket steam trap made of cast iron, with a 3/4-inch FNPT connection, a maximum capacity of 2,060 lb/hr, a maximum pressure of 200 psi, and a maximum temperature of 450°F. It features an in-line configuration for horizontal installation and does not include a strainer.

View Product & Quote

Technical Specifications

Parameter	Value
FNPT	3/4 in
Max.	200 psi
Type	2,060 lb/hr, Strainer Not Included
Brand	MEPCO
Configuration	In-line
Installation Orientation	Horizontal
Manufacturer Part Number	IB12-3-30G
