Megadyne 3G-OTH-113123 — Technical Specifications

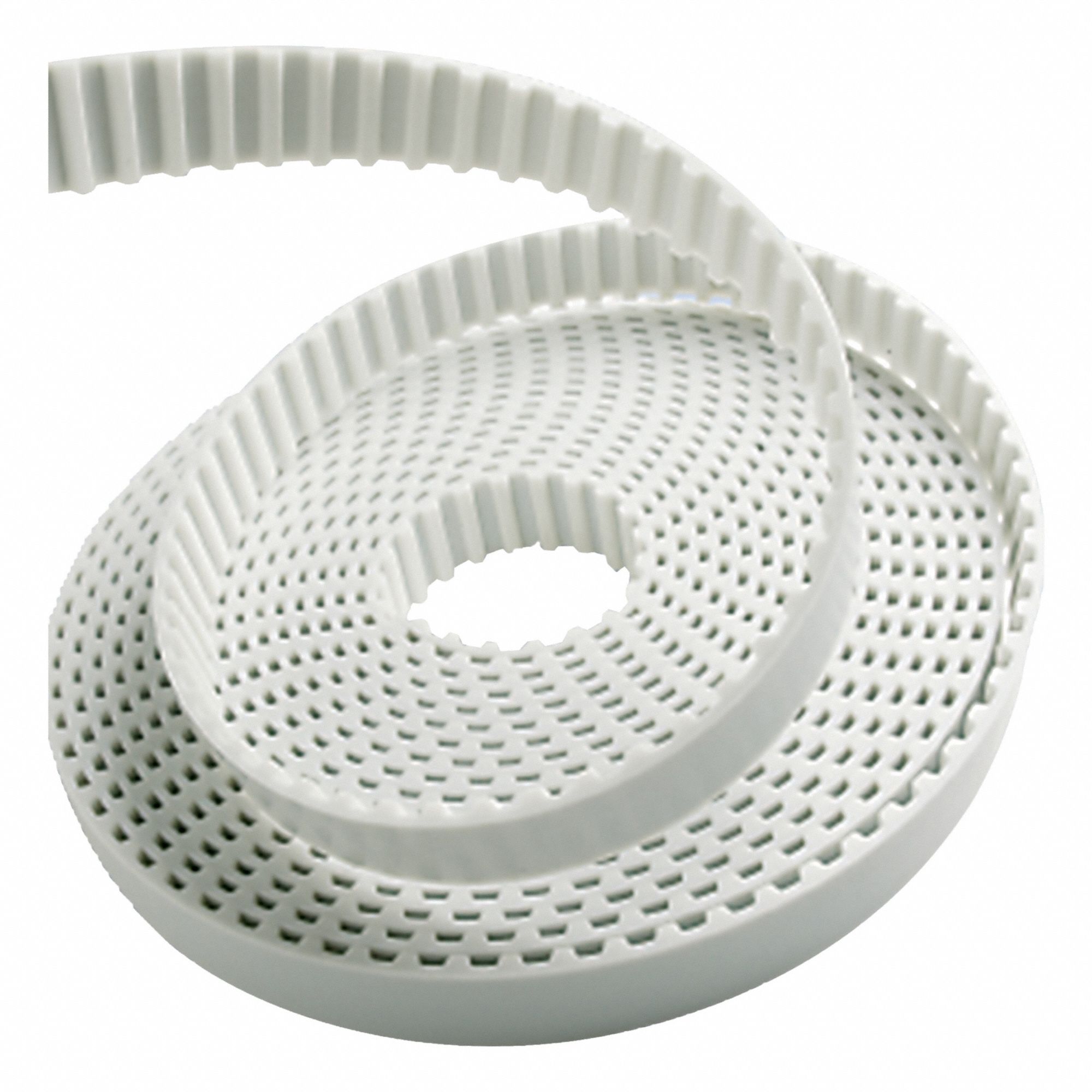

The MEGADYNE Megapower T5 Section Trapezoidal Timing Belt (SKU 401ED9) is a closed-loop belt with a 5 mm pitch, 16 mm top width, and 225 mm outside length. It features a trapezoidal tooth profile and 45 teeth, identified by Industry Number T5-225-16 and Manufacturer Part Number 16T5/225.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | T5-225-16 |
| Brand | MEGADYNE |
| Pitch | 5 mm |
| Teeth | 45 |
| Top Wd | 16 mm |
| Outside Lg | 225 mm |
| Belt Series | Megapower |
| Length Type | Closed Loop |
| Tooth Profile | Trapezoidal |
| Industry Number | T5-225-16 |
| Manufacturer Part Number | 16T5/225 |
