Megadyne 3G-OTH-116892 — Technical Specifications

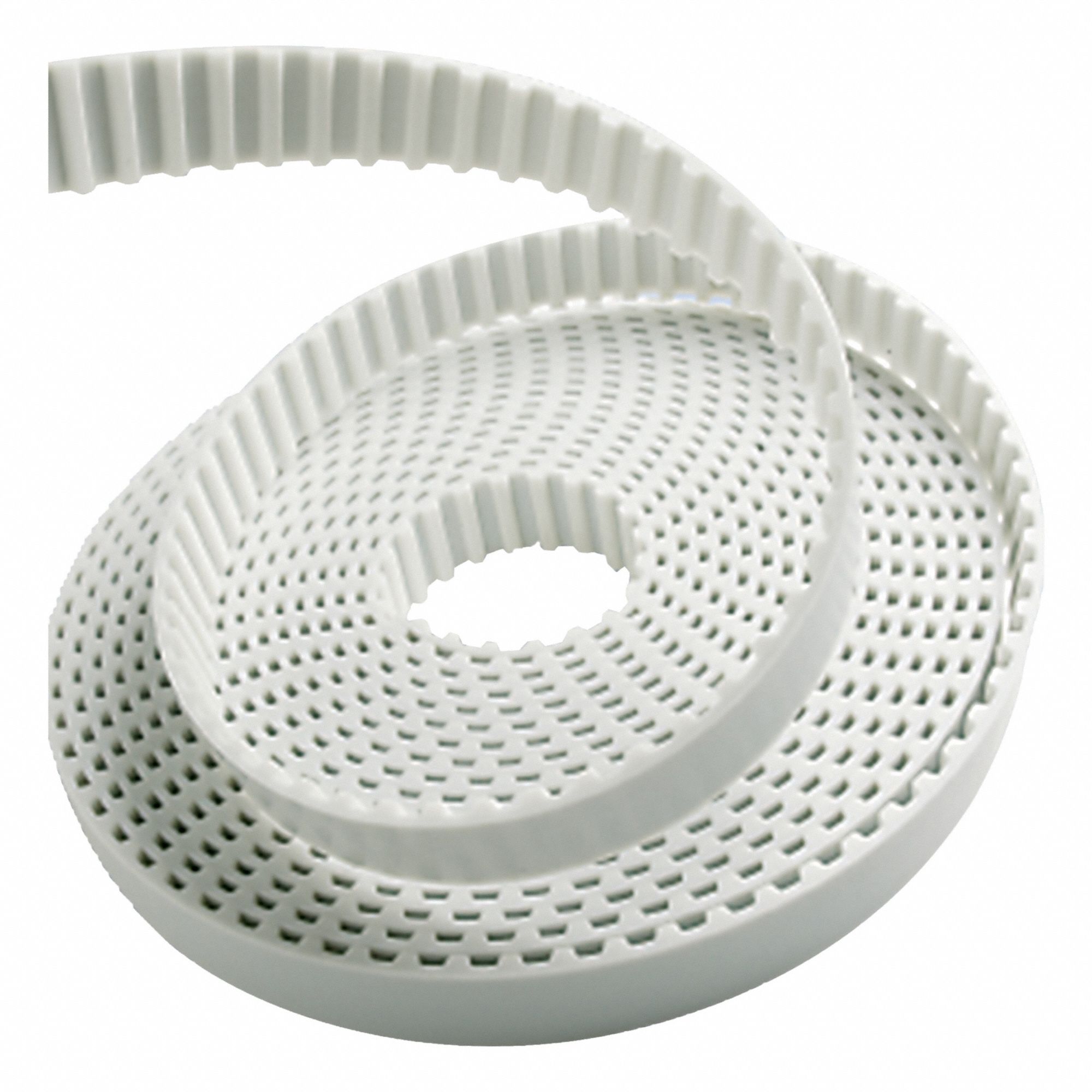

The MEGADYNE Megapower T5 Section Trapezoidal Timing Belt (SKU 401DX9, MPN 25T5/480) is a closed-loop belt with a 5 mm pitch, 25 mm top width, and 480 mm outside length, featuring 96 teeth and a trapezoidal tooth profile. This belt is identified by the industry number T5-480-25 and is designed for synchronous power transmission applications.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | T5-480-25 |
| Brand | MEGADYNE |
| Pitch | 5 mm |
| Teeth | 96 |
| Top Wd | 25 mm |
| Outside Lg | 480 mm |
| Belt Series | Megapower |
| Length Type | Closed Loop |
| Tooth Profile | Trapezoidal |
| Industry Number | T5-480-25 |
| Manufacturer Part Number | 25T5/480 |
