Megadyne 3G-OTH-110053 — Technical Specifications

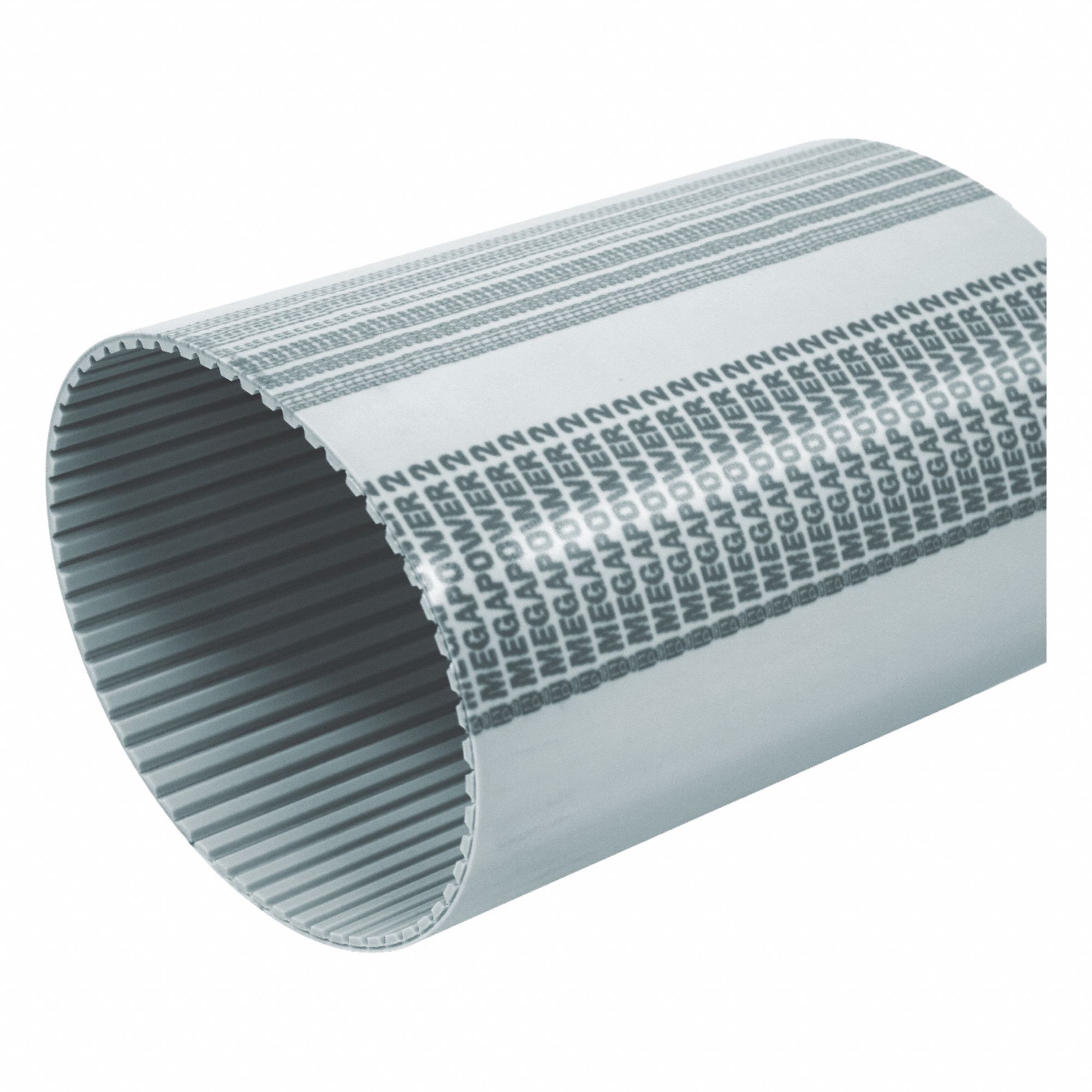

The MEGADYNE Megapower 390H100US is a closed-loop H Section trapezoidal timing belt with a 0.5 in pitch, 1 in top width, 78 teeth, and a 39 in outside length. This industrial belt is designed for synchronous power transmission applications requiring precise timing and positive drive.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | 390H100US |
| Brand | MEGADYNE |
| Pitch | 0.5 in |
| Teeth | 78 |
| Top Wd | 1 in |
| Outside Lg | 39 in |
| Belt Series | Megapower |
| Length Type | Closed Loop |
| Tooth Profile | Trapezoidal |
| Industry Number | 390H100US |
| Manufacturer Part Number | 390H100US |
