Megadyne 3G-OTH-108915 — Technical Specifications

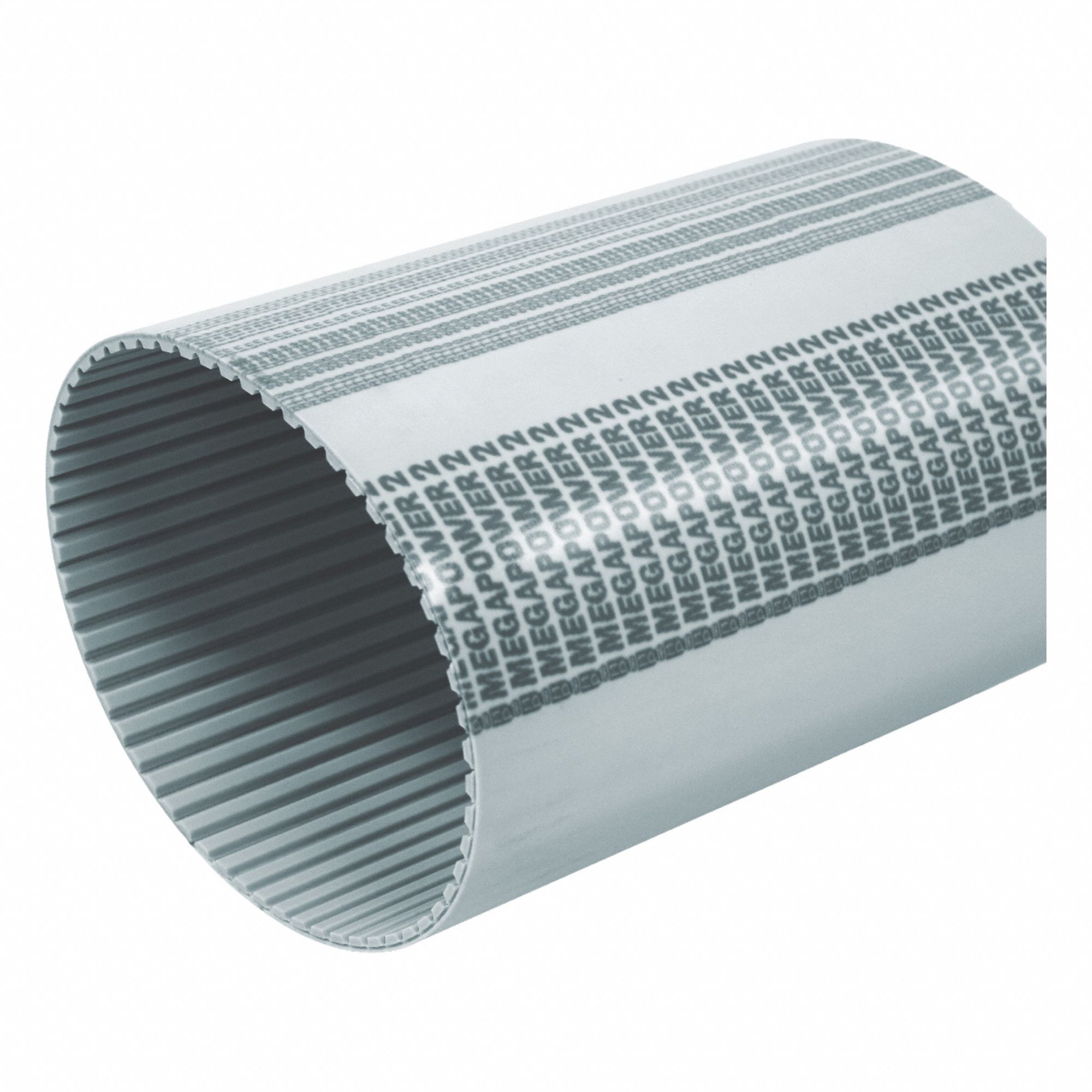

The MEGADYNE Megapower 420H100US is a closed-loop trapezoidal timing belt with an H section profile. It features a 0.5-inch pitch, 1-inch top width, 84 teeth, and a 42-inch outside length. This belt is designed for industrial power transmission applications requiring precise synchronization.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | 420H100US |
| Brand | MEGADYNE |
| Pitch | 0.5 in |
| Teeth | 84 |
| Top Wd | 1 in |
| Outside Lg | 42 in |
| Belt Series | Megapower |
| Length Type | Closed Loop |
| Tooth Profile | Trapezoidal |
| Industry Number | 420H100US |
| Manufacturer Part Number | 420H100US |
