Maxx Air 3G-OTH-77356 — Technical Specifications

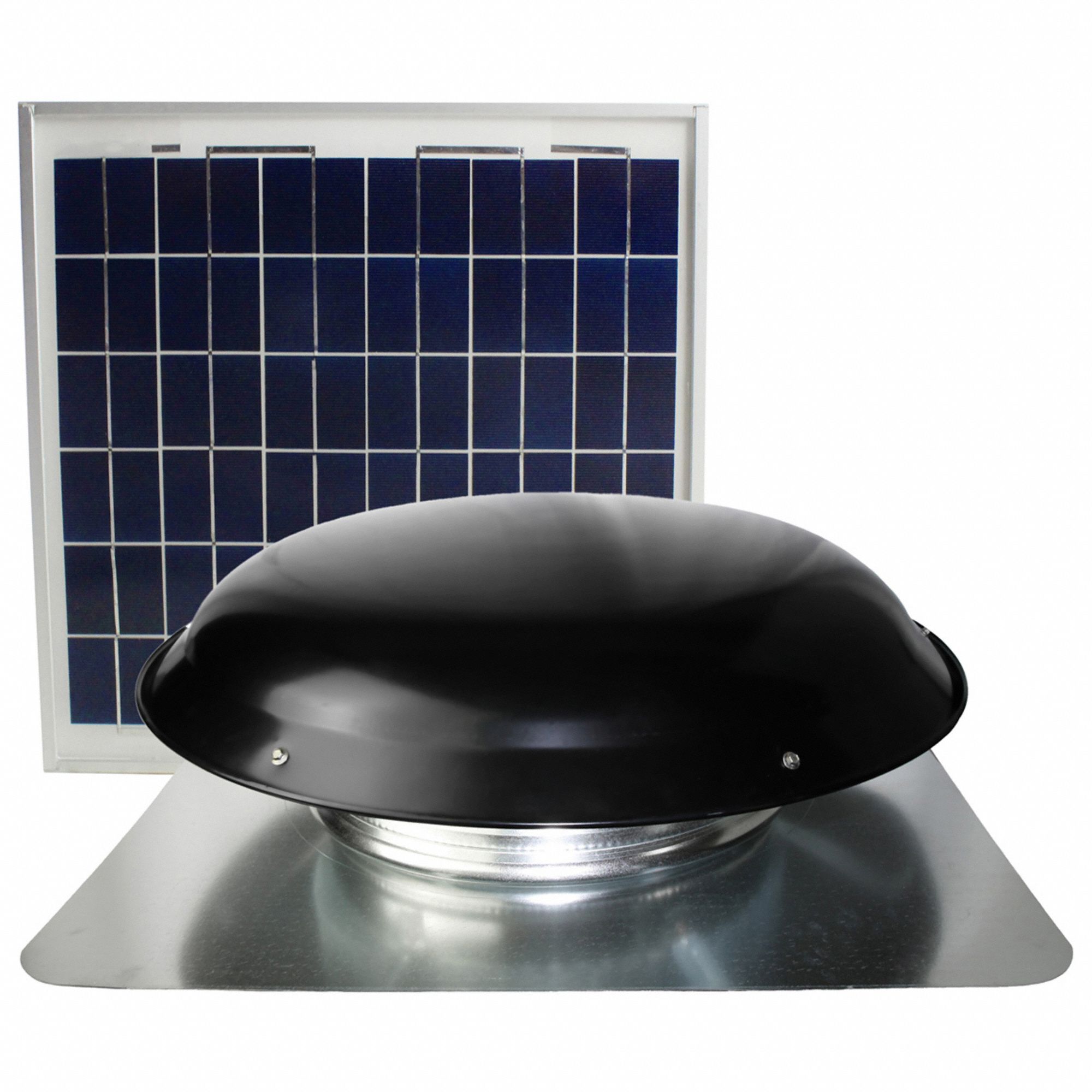

The MAXX AIR Attic Exhaust Fan is a roof-mount solar-powered fan featuring a thermally protected DC motor and a black steel dome. It delivers 1,000 to 1,499 cfm exhaust airflow at 0.000 in SP, operates on 18V DC with 2.6 A current, and includes a solar panel. This manual unit does not include a humidistat, thermostat, shutter, or fire safety shut-off.
Technical Specifications
| Parameter | Value |
|---|---|
| Max. | 1,000 cfm |
| Type | Solar, Max. 1,600 sq ft Attic, Manual, Black Steel |
| Brand | MAXX AIR |
| Current | 2.6 A |
| Features | Sunlight Powered |
| Includes | Solar Panel |
| Dome Color | Black |
| Motor Type | Thermally Protected DC Motor |
| Dome Material | Steel |
| Housing Color | Black |
| Includes Shutter | No |
| Mounting Location | Roof |
| Nameplate Voltage | 18V DC |
| Includes Humidistat | No |
| Includes Thermostat | No |
| Fire Safety Shut-Off | No |
| High-Efficiency Motor | Yes |
| Manufacturer Part Number | CXSOLRFBLKUPS |
| Power Source/High-Efficiency Motors | Solar Powered / High-Efficiency Motor |
| Exhaust Airflow @ 0.000 In SP - Range | 1,000 to 1,499 cfm |
| For High-Static Pressure Applications | No |
