Marathon Motors 3G-OTH-56385 — Technical Specifications

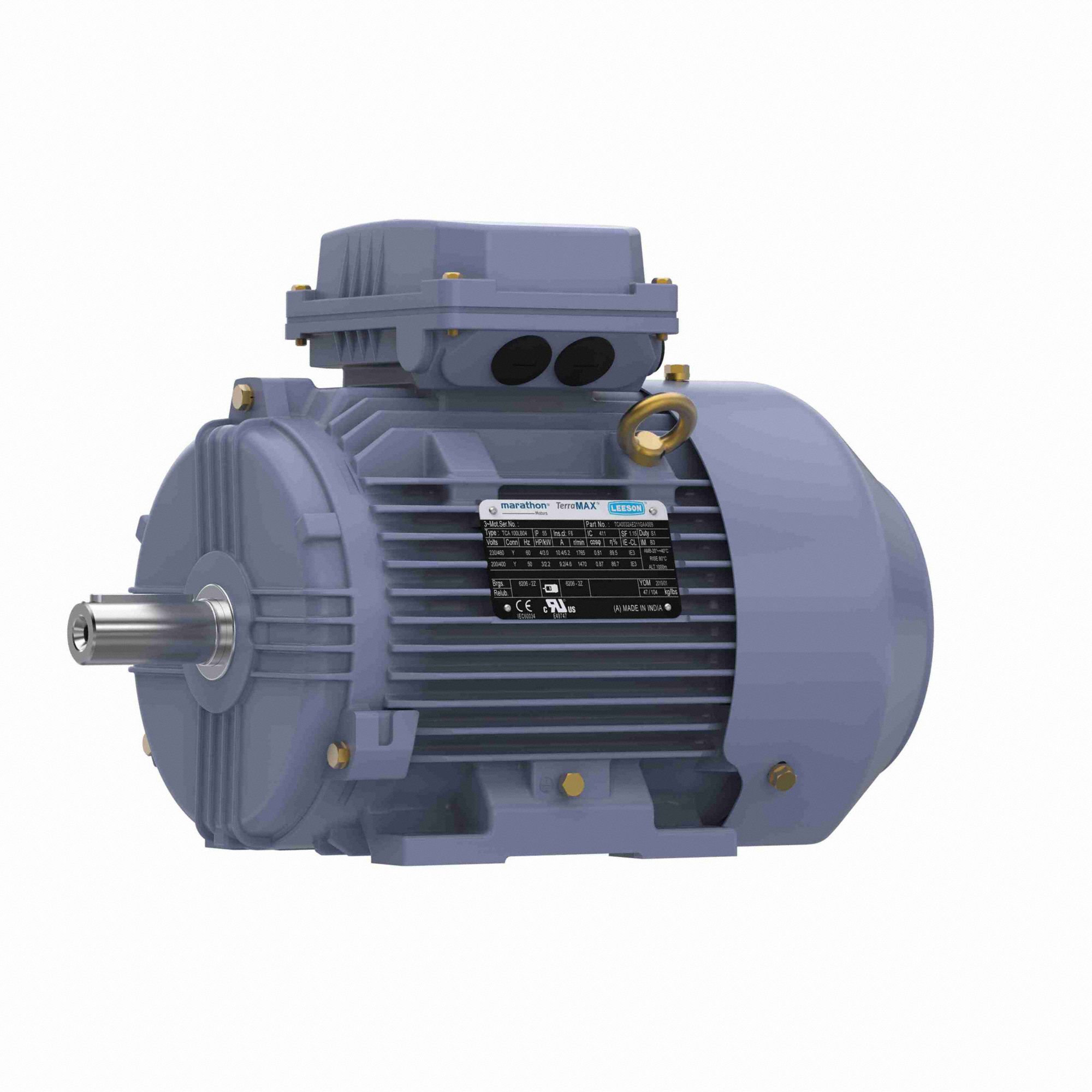

The MARATHON MOTORS General Purpose Motor is a 5 1/2 hp Rigid Base 3-Phase IEC Metric AC motor with a TEFC enclosure. It operates at 3520 RPM and 230/460V AC, drawing 12.4/6.2 A full load amps. This motor features a 112M frame size and is identified by manufacturer part number TCA0041AE231GAA009.
Technical Specifications
| Parameter | Value |
|---|---|
| AC | 230/460V |
| Type | Rigid Base Mount |
| Brand | MARATHON MOTORS |
| Frame Size | 112M |
| Motor Enclosure | TEFC |
| Nameplate RPM @ 60 Hz | 3520 RPM |
| Full Load Amps @ 60 Hz | 12.4/6.2 A |
| Manufacturer Part Number | TCA0041AE231GAA009 |
| Nameplate Voltage @ 60 Hz | 230/460V AC |
