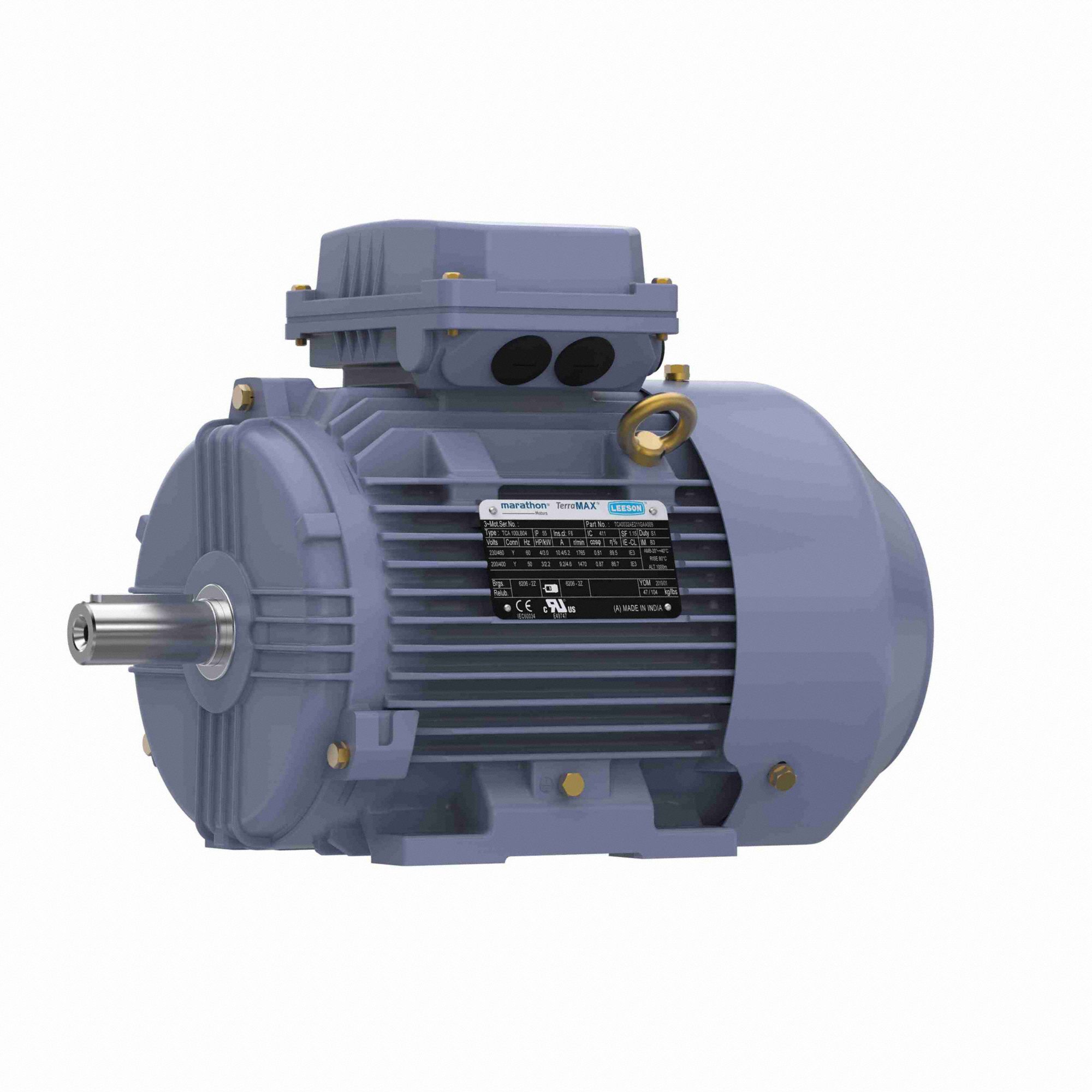

Marathon Motors 3G-OTH-56149 — Technical Specifications
The MARATHON MOTORS General Purpose Motor is a 3 hp, Rigid Base 3-Phase IEC Metric AC motor with a TEFC enclosure. It operates at 1770 RPM and 230/460V AC, drawing 7.8/3.9 A full load amps. This motor is designed for general-purpose industrial applications requiring a 100L frame size.
Technical Specifications
| Parameter | Value |
|---|---|
| AC | 230/460V |
| Type | Rigid Base Mount |
| Brand | MARATHON MOTORS |
| Frame Size | 100L |
| Motor Enclosure | TEFC |
| Nameplate RPM @ 60 Hz | 1770 RPM |
| Full Load Amps @ 60 Hz | 7.8/3.9 A |
| Manufacturer Part Number | TCA2P22AE251GAA009 |
| Nameplate Voltage @ 60 Hz | 230/460V AC |
