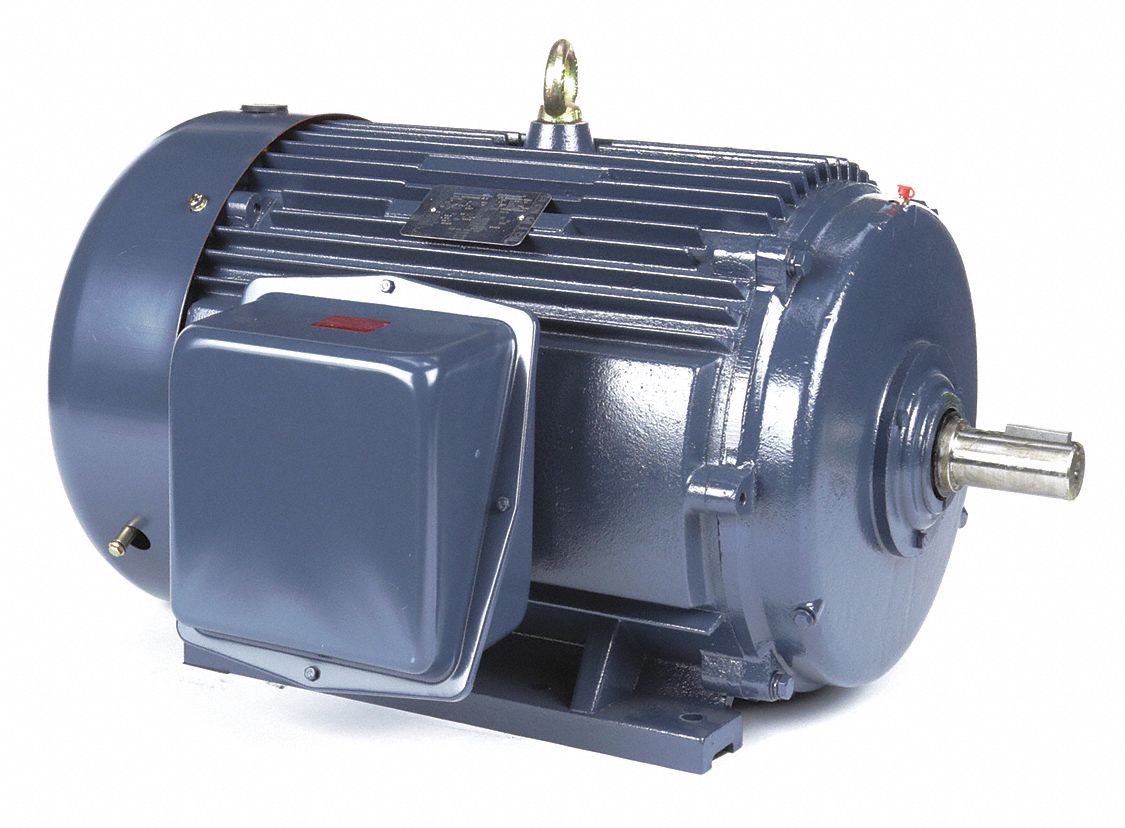

Marathon Motors 3G-OTH-73723 — Technical Specifications
The MARATHON MOTORS General Purpose Motor is a Rigid Base 3-Phase AC Motor with a TEFC enclosure. It is rated at 75 hp, 575V AC, with a full load current of 67.0 A and a nameplate RPM of 3,570 RPM at 60 Hz (MPN 365TSTFCD6002).
Technical Specifications
| Parameter | Value |
|---|---|
| AC | 575V |
| Type | Totally Enclosed Fan Cooled, 75 hp |
| Brand | MARATHON MOTORS |
| Motor Enclosure | TEFC |
| Nameplate RPM @ 60 Hz | 3,570 RPM |
| Manufacturer Part Number | 365TSTFCD6002 |
| Full Load Current @ 60 Hz | 67.0 A |
| Nameplate Voltage @ 60 Hz | 575V AC |
