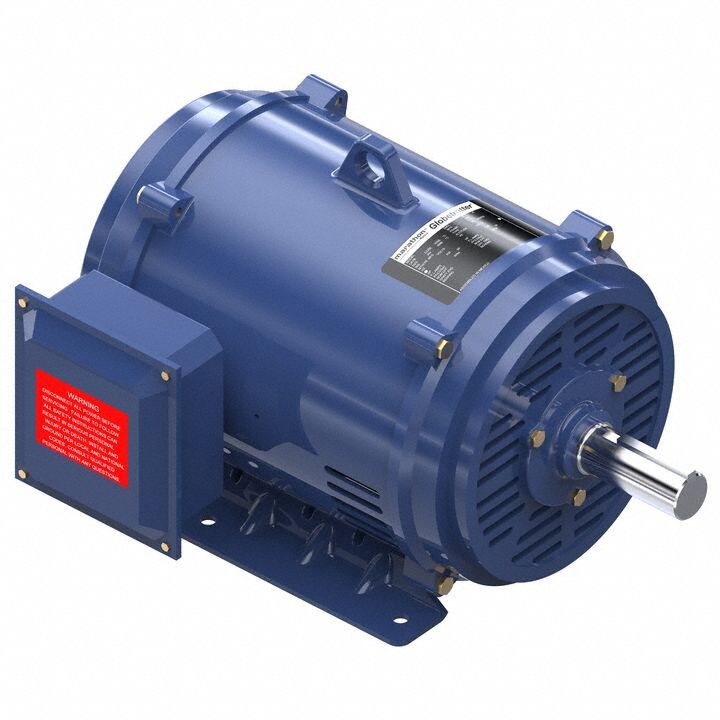

Marathon Motors 3G-OTH-61478 — Technical Specifications

Name: Marathon Motors 3G-OTH-61478 MARATHON MOTORS General Purpose Motor: Rigid Base Mount, Open Drip Proof, 40 hp, 230/460V AC (MPN 324TTDBD6070). Key specifications — Brand: MARATHON MOTORS; Nameplate Voltage @ 60 Hz: 230/460V AC; Full Load Current @ 60 Hz: 95.0/47.5 A; Nameplate RPM @ 60 Hz: 1,780 RPM; Motor Enclosure: ODP.
Brand: Marathon Motors

The MARATHON MOTORS General Purpose Motor: Rigid Base Mount (SKU 40Z959, MPN 324TTDBD6070) is a 40 hp, rigid base 3-phase AC motor with an ODP enclosure. It operates at 1,780 RPM at 60 Hz and is rated for 230/460V AC with a full load current of 95.0/47.5 A.

View Product & Quote

Technical Specifications

Parameter	Value
AC	230/460V
Type	Open Drip Proof, 40 hp
Brand	MARATHON MOTORS
Motor Enclosure	ODP
Nameplate RPM @ 60 Hz	1,780 RPM
Manufacturer Part Number	324TTDBD6070
Full Load Current @ 60 Hz	95.0/47.5 A
Nameplate Voltage @ 60 Hz	230/460V AC
