Littelfuse 3G-OTH-36979 — Technical Specifications

Name: Littelfuse 3G-OTH-36979 LITTELFUSE Arc Flash Relay: DIN-Rail & Surface Relay Mounting, 120V AC/DC/12 to 48V DC/240V AC/DC (MPN PGR-8800-00). Key specifications — Input Type: (2) Reset; Input Voltage Range: 12 to 48V DC; Output Type: IGBT Switch; Interface: USB; Brand: LITTELFUSE.
Brand: Littelfuse

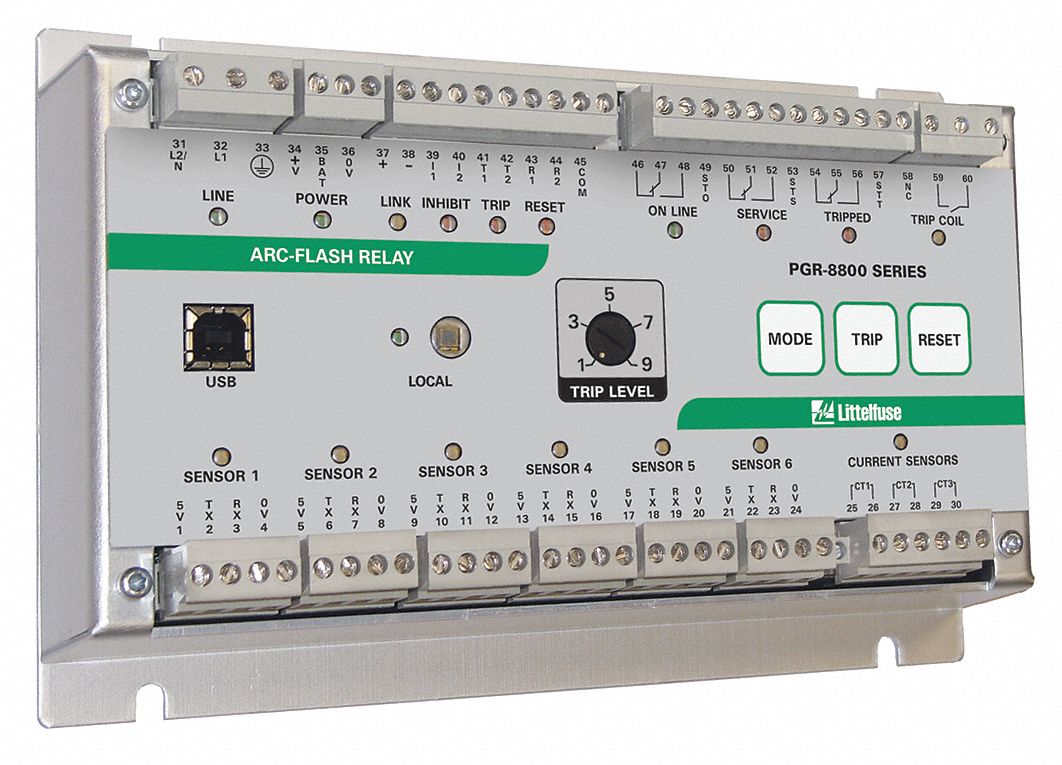

The LITTELFUSE Arc Flash Relay (MPN PGR-8800-00) is a combination DIN-rail and surface-mounted relay with a USB interface. It features two reset inputs and an IGBT switch output, operating on an input voltage range of 12 to 48V DC.

View Product & Quote

Technical Specifications

Parameter	Value
Type	120V AC/DC/12 to 48V DC/240V AC/DC
Brand	LITTELFUSE
Interface	USB
Input Type	(2) Reset
Output Type	IGBT Switch
Input Voltage Range	12 to 48V DC
Manufacturer Part Number	PGR-8800-00
