Lincoln Electric Tig 3G-OTH-356108 — Technical Specifications

Name: Lincoln Electric Tig 3G-OTH-356108 LINCOLN ELECTRIC TIG Welder: Square Wave 205, AC/DC, Stick/TIG Pack w/Foot Control (MPN K5613-1). Key specifications — Maximum Amperage (TIG): 205 A; Phase: Single-Phase; Input Frequency: 60 Hz; Rated Output at Duty Cycle (TIG) (Merch - Table Column, Filters): 85 A @ 100%; Input Voltage (Nominal) (Merch - Table Column, Filters): 120V.
Brand: Lincoln Electric Tig

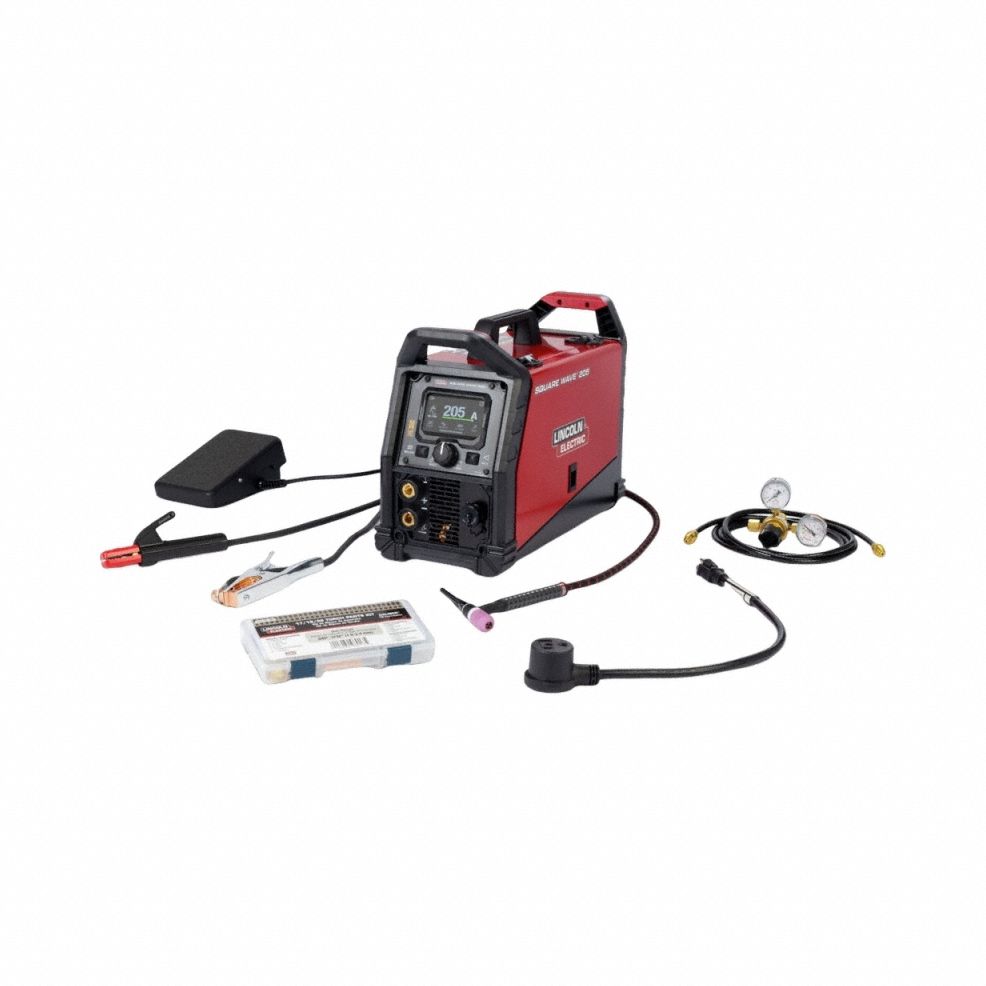

The Lincoln Electric Square Wave 205 is a single-phase AC/DC TIG welder with stick capability, operating at 60 Hz and a nominal input voltage of 120V. It delivers a maximum TIG amperage of 205 A and a rated output of 85 A at 100% duty cycle. This unit includes a foot control and is identified by manufacturer part number K5613-1.

View Product & Quote

Technical Specifications

Parameter	Value
Type	AC/DC, Stick/TIG Pack w/Foot Control
Phase	Single-Phase
Input Frequency	60 Hz
Maximum Amperage (TIG)	205 A
Manufacturer Part Number	K5613-1
Input Voltage (Nominal) (Merch - Table Column, Filters)	120V
Rated Output At Duty Cycle (TIG) (Merch - Table Column, Filters)	85 A @ 100%
