Liberty Pumps 3G-OTH-85289 — Technical Specifications

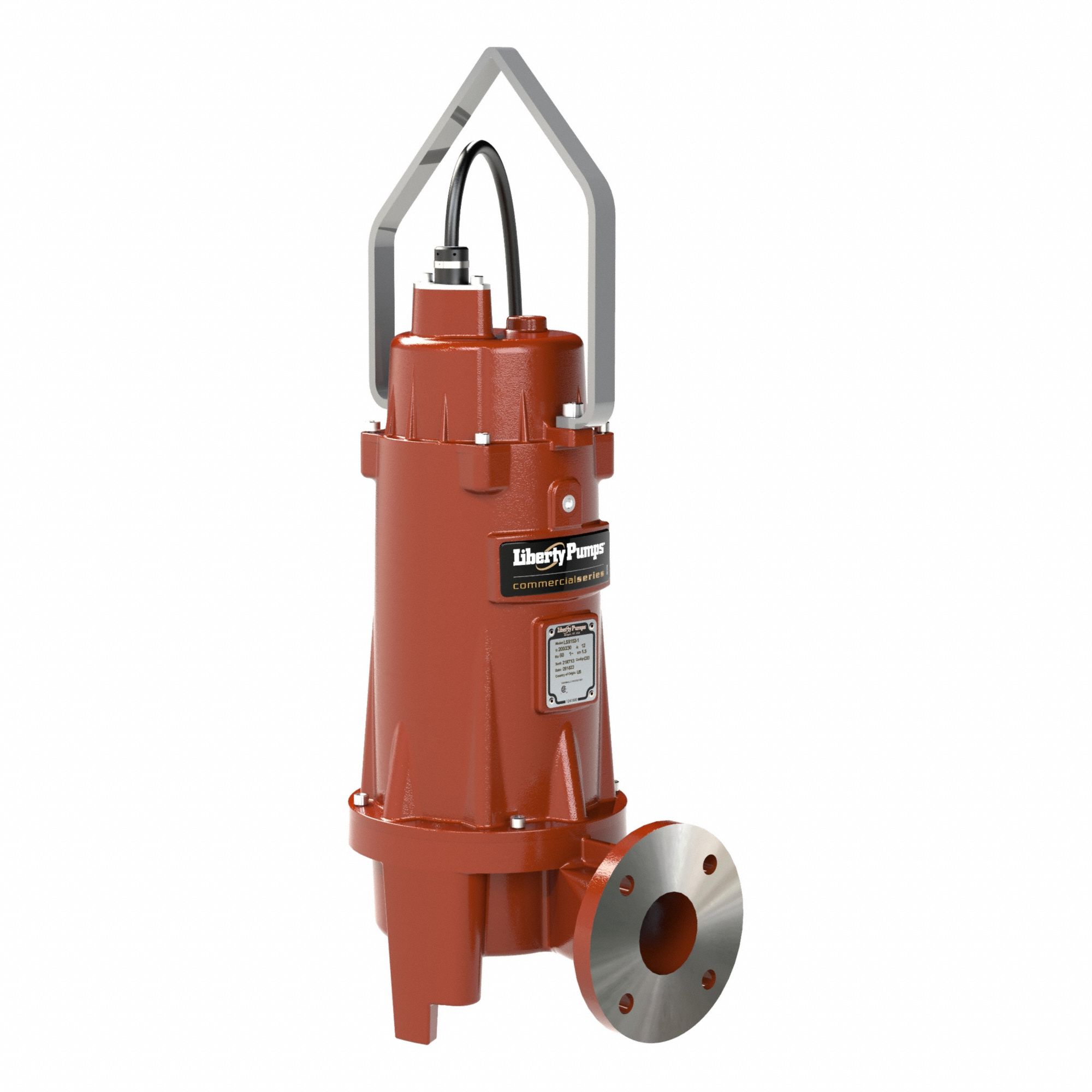

The LIBERTY PUMPS Sewage Ejector Pump (model LSS203-1) is a cast-iron general purpose sewage ejector pump with a horizontal discharge orientation. It operates on 208 to 230V AC three-phase power, delivers 2 hp, and achieves a maximum head of 37 ft. The pump features a cast-iron impeller and is not rated for hazardous locations; a switch is not included.
Technical Specifications
| Parameter | Value |
|---|---|
| AC | 208 to 230V |
| Type | Three Phase, 2 hp |
| Brand | LIBERTY PUMPS |
| Switch | Not Included |
| Max. Head | 37 ft |
| Rated Voltage | 208 to 230V AC |
| Impeller Material | Cast Iron |
| Discharge Orientation | Horizontal |
| Hazardous Location Class | Not Rated |
| Manufacturer Part Number | LSS203-1 |
