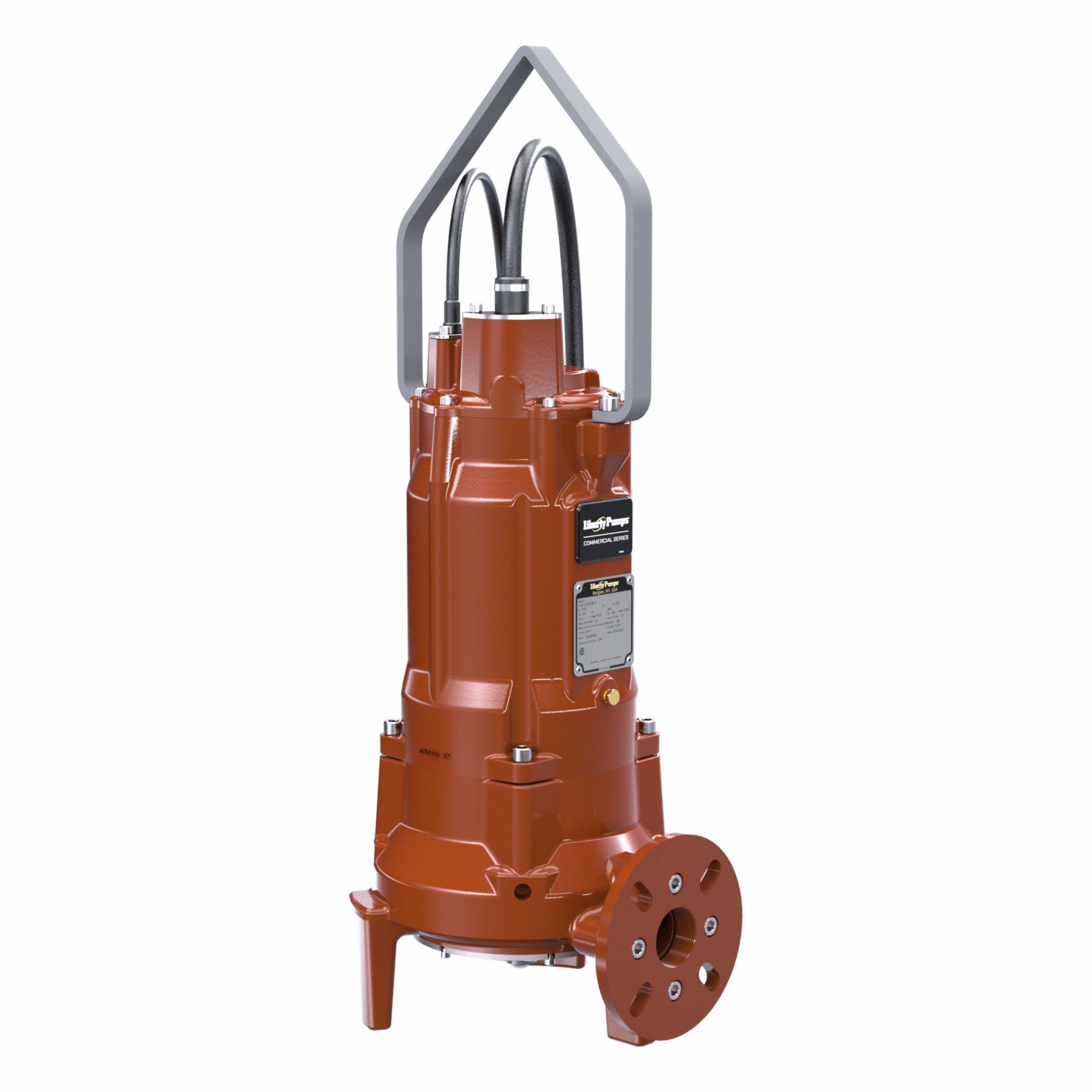

Liberty Pumps 3G-OTH-85520 — Technical Specifications
The LIBERTY PUMPS Grinder Pump: Horizontal is a general purpose sewage grinder pump with a 3 hp, three-phase motor rated at 460V AC. It delivers 115 gpm at 10 feet of head and features a 2-inch FNPT discharge. The volute is constructed of cast iron, and the unit is not rated for hazardous locations.
Technical Specifications
| Parameter | Value |
|---|---|
| AC | 460V |
| FNPT | 2 in |
| Type | Three Phase, 3 hp, 115 gpm @ 10' of Head |
| Brand | LIBERTY PUMPS |
| Rated Voltage | 460V AC |
| Volute Material | Cast Iron |
| Discharge Orientation | Horizontal |
| Hazardous Location Class | Not Rated |
| Manufacturer Part Number | LSGH304M-5 |
