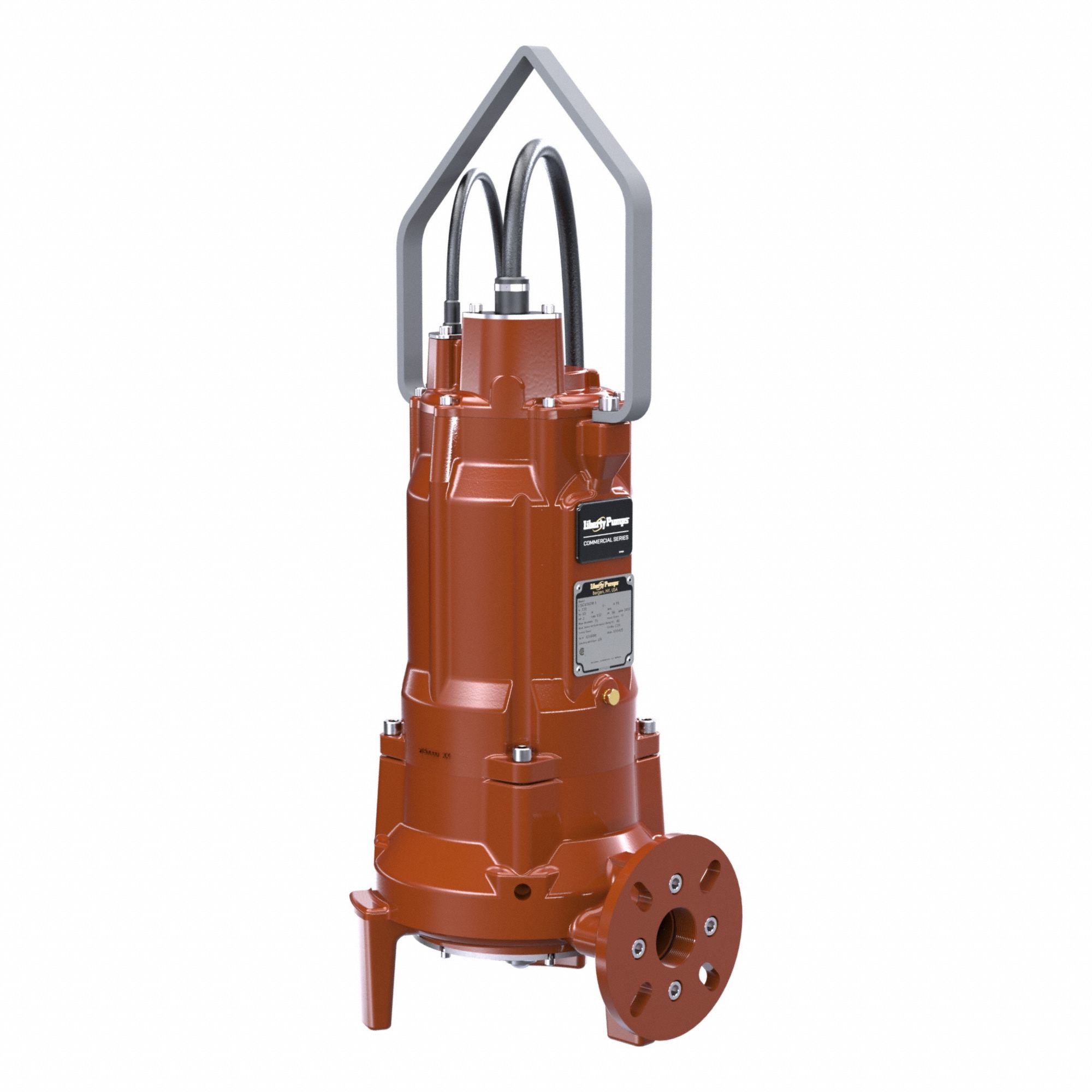

Liberty Pumps 3G-OTH-85395 — Technical Specifications
The LIBERTY PUMPS Grinder Pump: Vertical is a general purpose sewage grinder pump with a 3 hp, three-phase motor rated at 575V AC. It features a cast iron volute, vertical discharge orientation, and a 2 in FNPT connection, delivering up to 115 gpm at 10' of head. This model (MPN LSGH305MV-3) is not rated for hazardous locations.
Technical Specifications
| Parameter | Value |
|---|---|
| AC | 575V |
| FNPT | 2 in |
| Type | Three Phase, 3 hp, 115 gpm @ 10' of Head |
| Brand | LIBERTY PUMPS |
| Rated Voltage | 575V AC |
| Volute Material | Cast Iron |
| Discharge Orientation | Vertical |
| Hazardous Location Class | Not Rated |
| Manufacturer Part Number | LSGH305MV-3 |
