Legris 3G-OTH-492602 — Technical Specifications

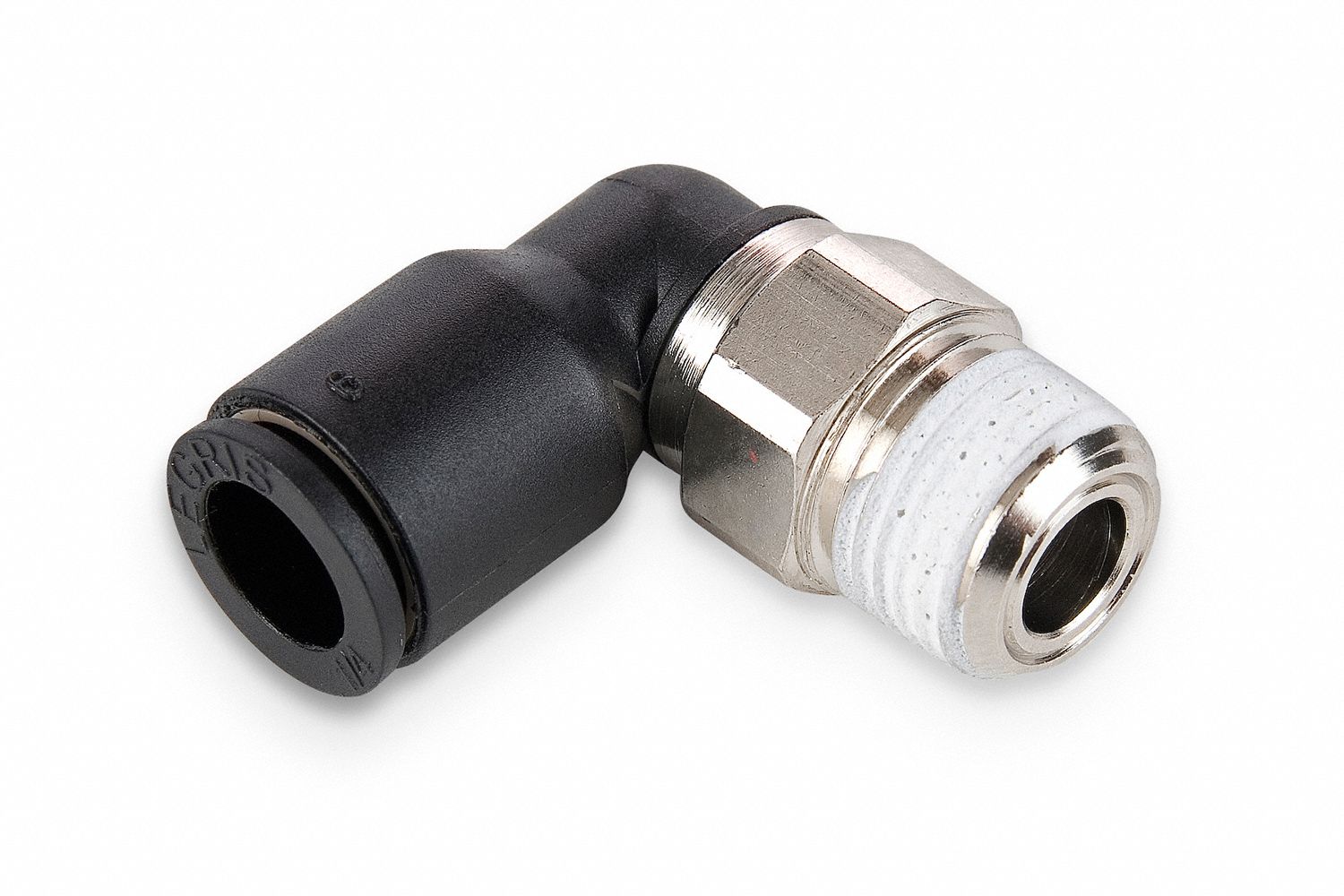

The LEGRIS Push-Fit Elbow Fitting (MPN 3109 10 10) is a nylon and nickel-plated brass tube fitting with a 1/8 in BSPT pipe thread and a 10 mm push-to-connect port, offering a 23 mm overall length. This BSPT x Push-to-Connect configuration enables secure, tool-free tubing connections in pneumatic and fluid-handling systems.
