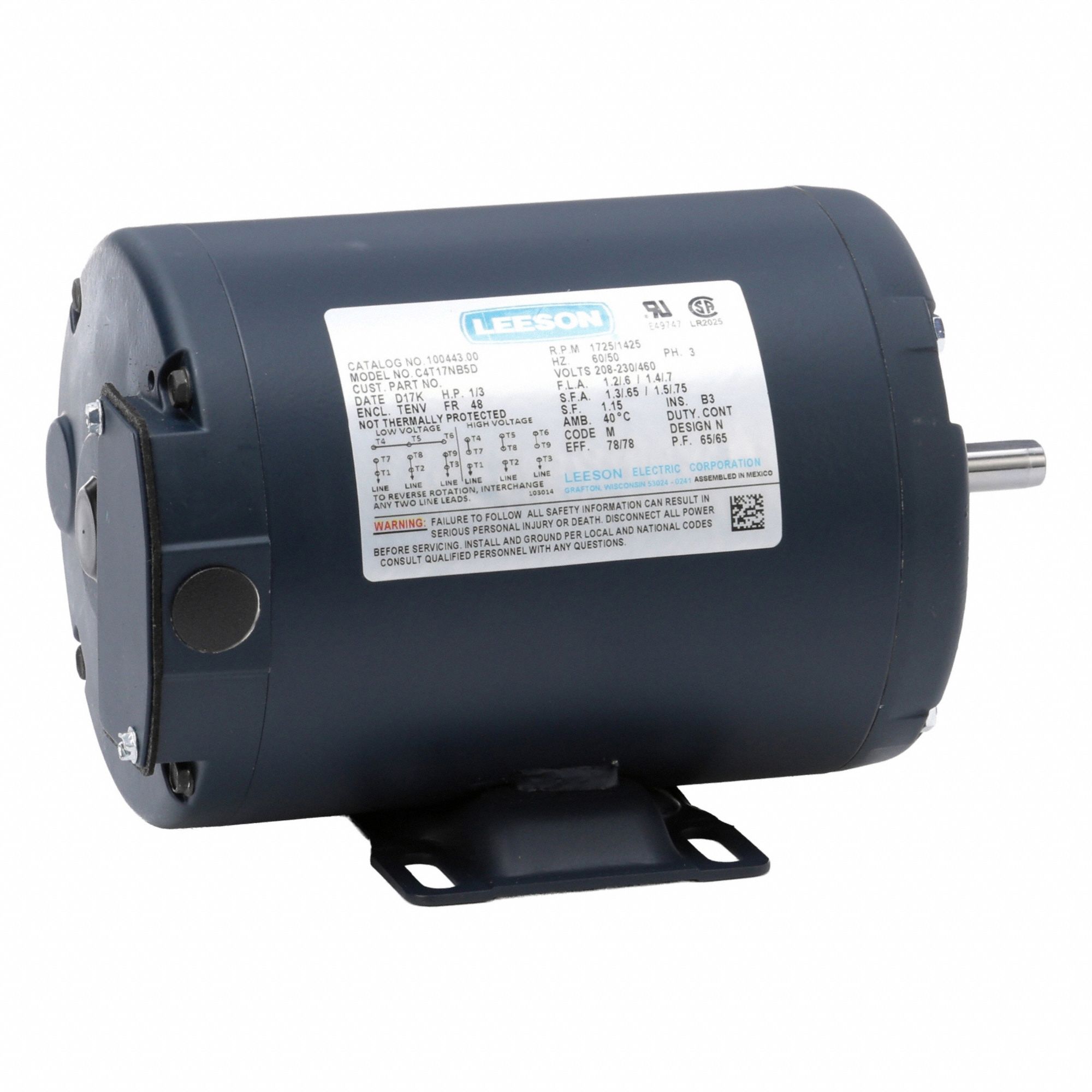

Leeson 3G-OTH-54724 — Technical Specifications
The LEESON General Purpose Motor: Rigid Base Mount (SKU 820HM7, MPN 100443.00) is a rigid base 3-phase general purpose AC motor with a TENV enclosure. It operates at 1,725 RPM at 60 Hz with a full load current of 1.2 A and a nameplate voltage of 230/460V AC.
Technical Specifications
| Parameter | Value |
|---|---|
| AC | 230/460V |
| Type | Totally Enclosed Non-Ventilated, 1/3 hp |
| Brand | LEESON |
| Motor Enclosure | TENV |
| Nameplate RPM @ 60 Hz | 1,725 RPM |
| Manufacturer Part Number | 100443.00 |
| Full Load Current @ 60 Hz | 1.2 A |
| Nameplate Voltage @ 60 Hz | 230/460V AC |
