Leeson 3G-OTH-56650 — Technical Specifications

Name: Leeson 3G-OTH-56650 LEESON General Purpose Motors: C-Face/Rigid Base Mount, Open Drip Proof, 1/2 hp, 208-230/460V AC (MPN 056T34D15644). Key specifications — Brand: LEESON; Nameplate Voltage @ 60 Hz: 208-230/460V AC; Full Load Current @ 60 Hz: 2.0-2.0/1.0 A; Nameplate RPM @ 60 Hz: 3,450 RPM; Motor Enclosure: ODP.
Brand: Leeson

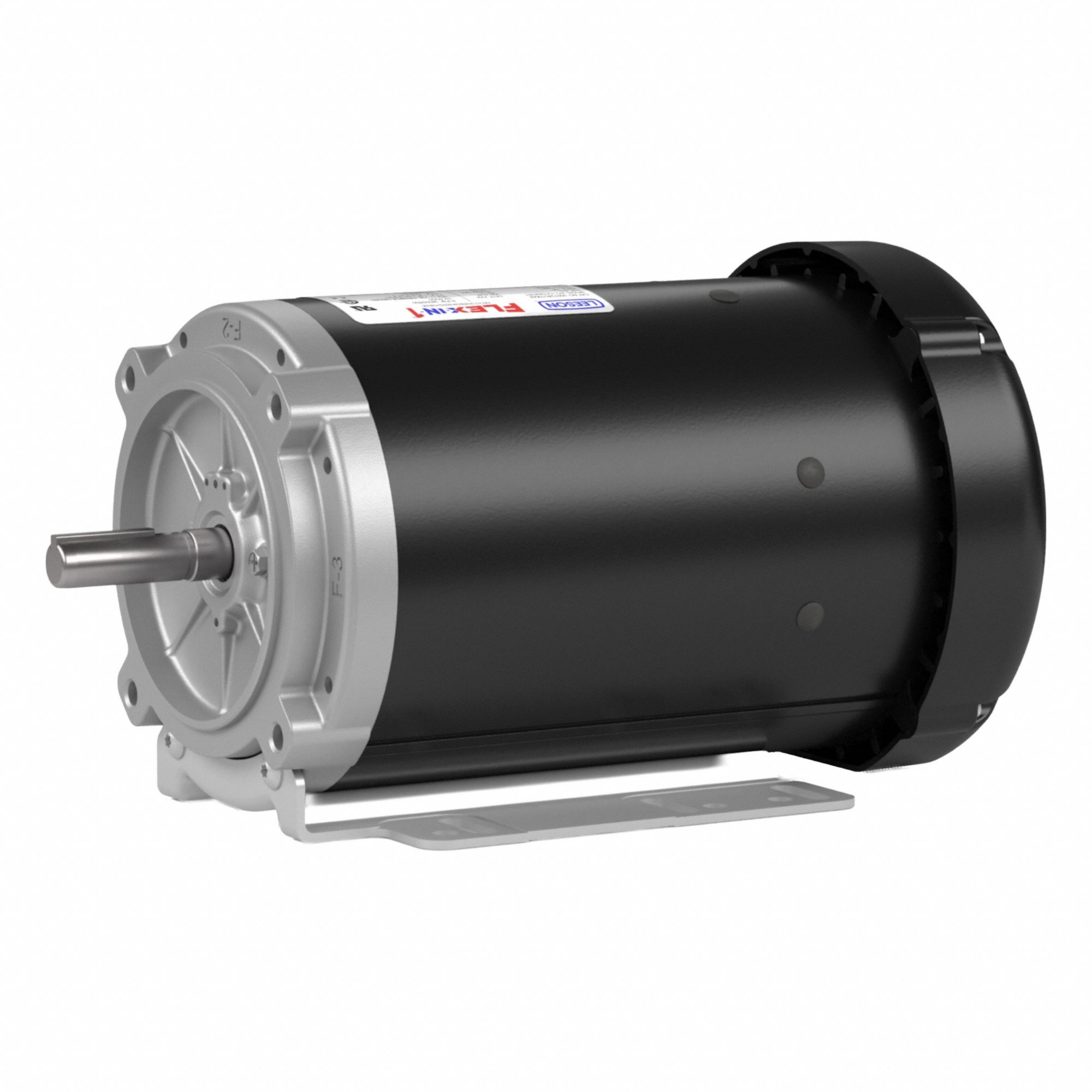

The LEESON Flex-In-1 3-Phase General Purpose AC Motor (SKU 801VA3, MPN 056T34D15644) is an ODP-enclosed, C-face/rigid base mount motor rated at 1/2 hp with a nameplate voltage of 208-230/460V AC at 60 Hz. It delivers a nameplate RPM of 3,450 RPM and draws a full load current of 2.0-2.0/1.0 A at 60 Hz.

View Product & Quote

Technical Specifications

Parameter	Value
AC	208-230/460V
Type	Open Drip Proof, 1/2 hp
Brand	LEESON
Motor Enclosure	ODP
Nameplate RPM @ 60 Hz	3,450 RPM
Manufacturer Part Number	056T34D15644
Full Load Current @ 60 Hz	2.0-2.0/1.0 A
Nameplate Voltage @ 60 Hz	208-230/460V AC
