Leeson 3G-OTH-56514 — Technical Specifications

Name: Leeson 3G-OTH-56514 LEESON General Purpose Motors: C-Face/Universal Mount, Totally Enclosed Fan Cooled, 1/3 hp (MPN 056T17F15949). Key specifications — Brand: LEESON; Nameplate Voltage @ 60 Hz: 208-230/460V AC; Full Load Current @ 60 Hz: 1.8-1.6/0.80 A; Nameplate RPM @ 60 Hz: 1,725 RPM; Motor Enclosure: TEFC.
Brand: Leeson

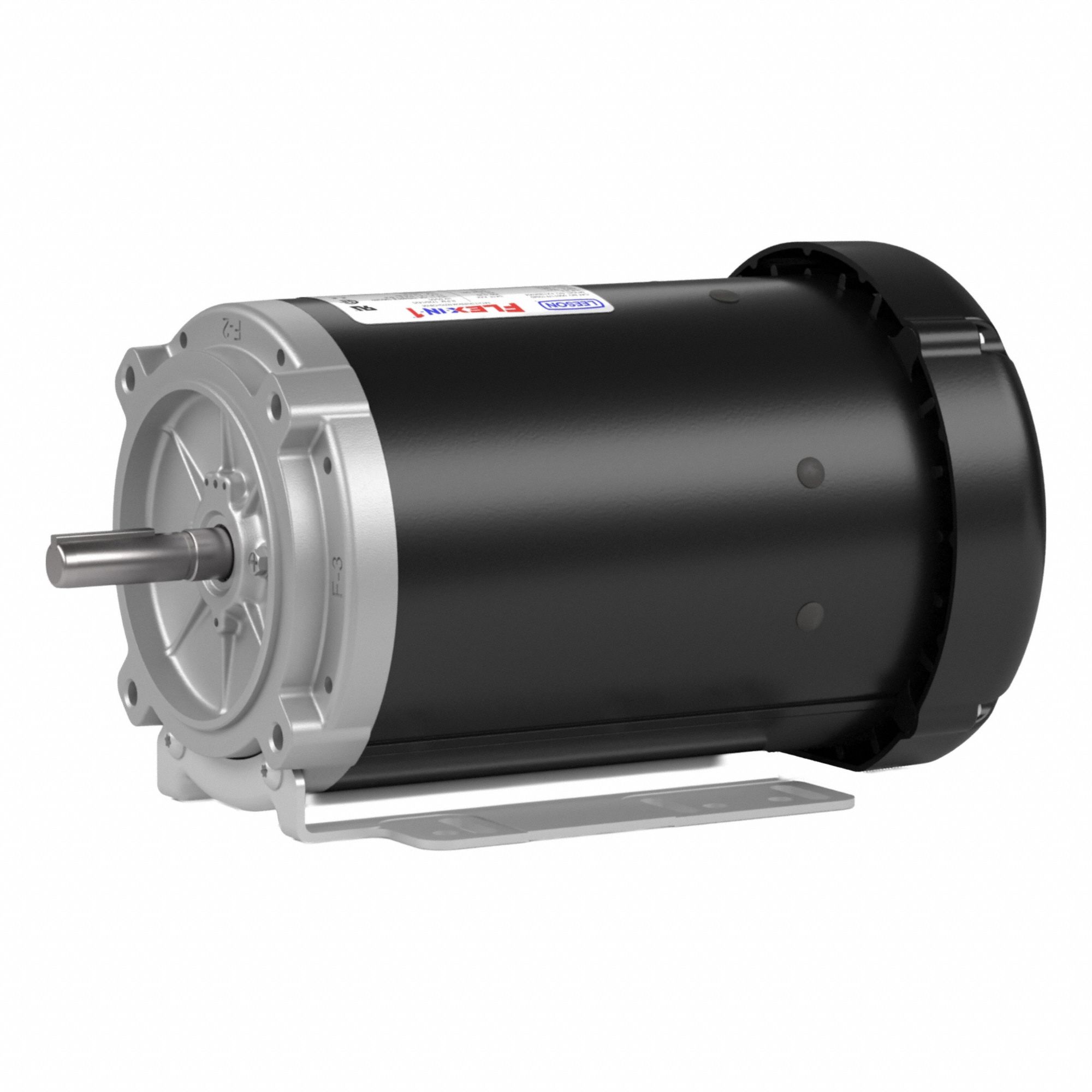

The LEESON Flex-In-1 3-Phase General Purpose AC Motor (SKU 801V96, MPN 056T17F15949) is a C-Face/Universal Mount motor with a TEFC enclosure. It operates at 1,725 RPM at 60 Hz with a nameplate voltage of 208-230/460V AC and a full load current of 1.8-1.6/0.80 A at 60 Hz.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Totally Enclosed Fan Cooled, 1/3 hp
Brand	LEESON
Motor Enclosure	TEFC
Nameplate RPM @ 60 Hz	1,725 RPM
Manufacturer Part Number	056T17F15949
Full Load Current @ 60 Hz	1.8-1.6/0.80 A
Nameplate Voltage @ 60 Hz	208-230/460V AC
