Leeson 3G-OTH-56919 — Technical Specifications

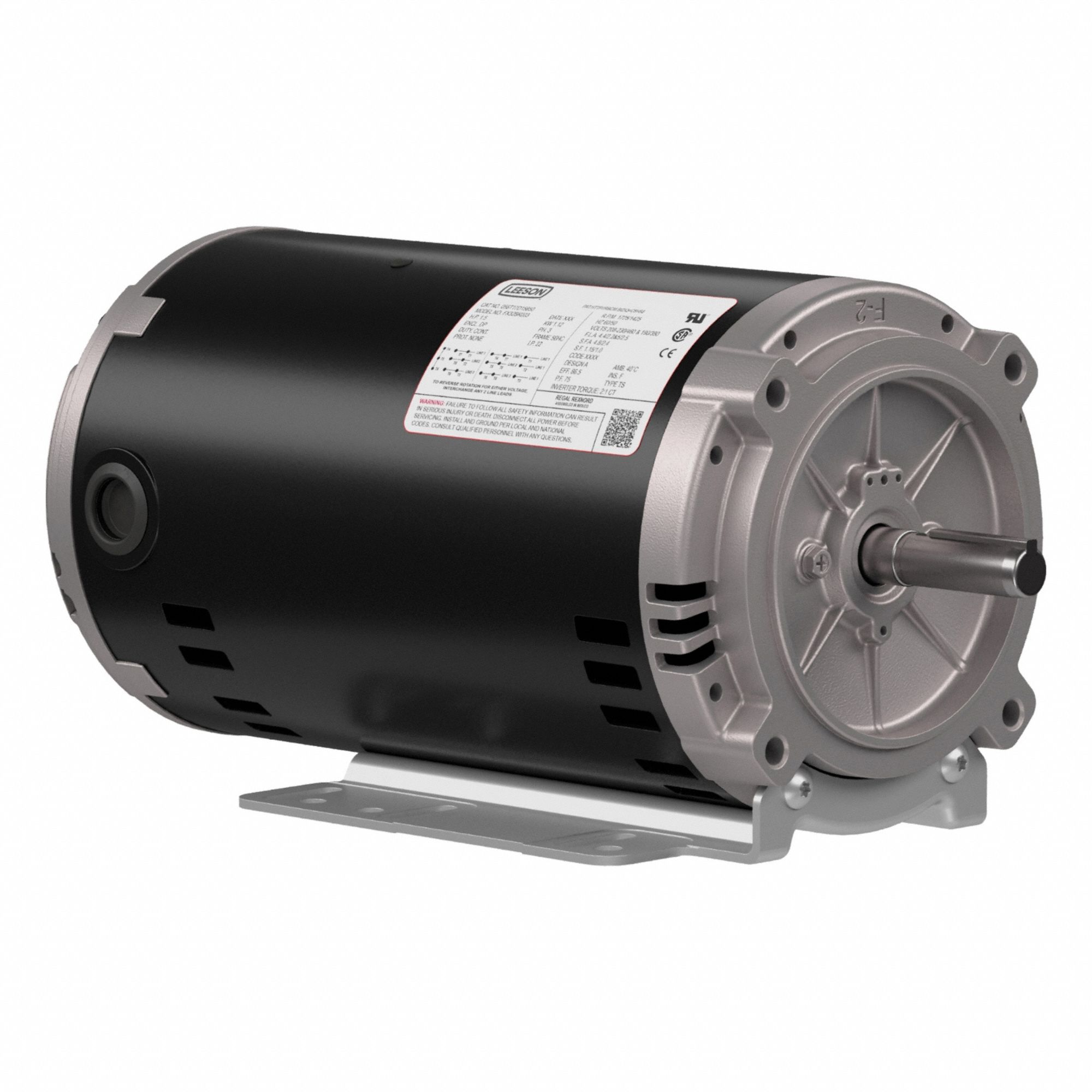

Name: Leeson 3G-OTH-56919 LEESON General Purpose Motors: C-Face/Universal Mount, Open Drip Proof, 1 1/2 hp, 230/460V AC (MPN 056T17D15850). Key specifications — Brand: LEESON; Nameplate Voltage @ 60 Hz: 230/460V AC; Full Load Current @ 60 Hz: 4.4/2.2 A; Nameplate RPM @ 60 Hz: 1,725 RPM; Motor Enclosure: ODP.
Brand: Leeson

The LEESON Flex-In-1 3-Phase General Purpose AC Motor (SKU 801V87) is an ODP-enclosed, C-Face/Universal Mount motor with a nameplate RPM of 1,725 RPM at 60 Hz. It operates at 230/460V AC with a full load current of 4.4/2.2 A at 60 Hz, and is identified by manufacturer part number 056T17D15850.

View Product & Quote

Technical Specifications

Parameter	Value
AC	230/460V
Type	Open Drip Proof, 1 1/2 hp
Brand	LEESON
Motor Enclosure	ODP
Nameplate RPM @ 60 Hz	1,725 RPM
Manufacturer Part Number	056T17D15850
Full Load Current @ 60 Hz	4.4/2.2 A
Nameplate Voltage @ 60 Hz	230/460V AC
