Leeson 3G-OTH-59032 — Technical Specifications

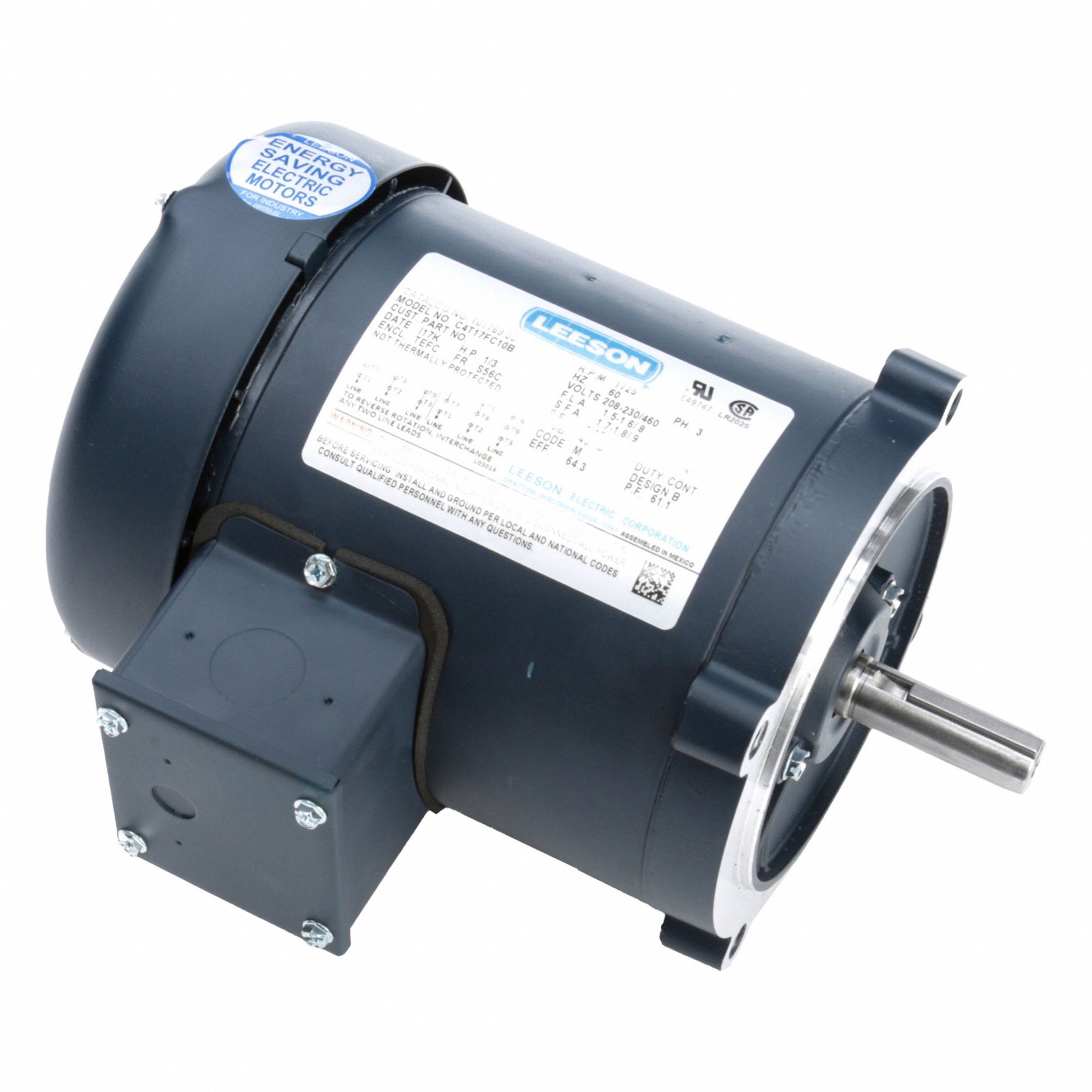

The LEESON General Purpose Motors: C-Face Mount (SKU 798KJ1) is a C-Face 3-Phase General Purpose AC Motor with a Totally Enclosed Air-Over (TEAO) enclosure. It operates at 1,725 RPM at 60 Hz and is rated for 208-230/460V AC with a full load current of 1.5-1.6/0.80 A. This motor is designed for industrial applications requiring a compact, durable motor with a C-face mounting configuration.
Technical Specifications
| Parameter | Value |
|---|---|
| AC | 208-230/460V |
| Type | Totally Enclosed Air-Over, 1/3 hp |
| Brand | LEESON |
| Motor Enclosure | TEAO |
| Nameplate RPM @ 60 Hz | 1,725 RPM |
| Manufacturer Part Number | 101769.00 |
| Full Load Current @ 60 Hz | 1.5-1.6/0.80 A |
| Nameplate Voltage @ 60 Hz | 208-230/460V AC |
