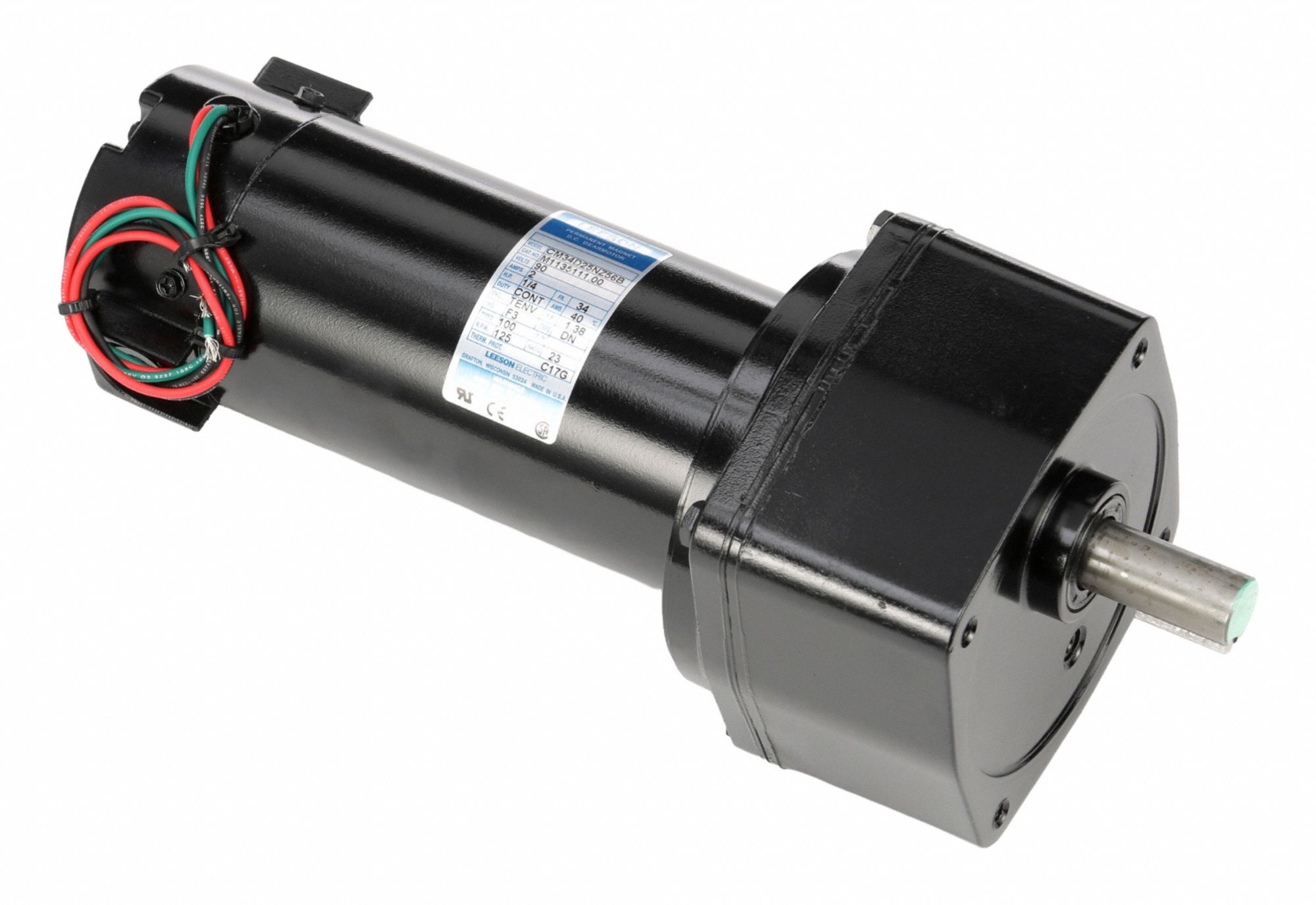

Leeson 3G-OTH-121165 — Technical Specifications
The LEESON Parallel Shaft DC Gearmotor (SKU 794AV4, MPN M1135111.00) is a permanent magnet DC gearmotor with a parallel shaft design. It operates at 90V DC, delivers 125 RPM, and provides a maximum torque of 100 in-lb with a 22.67:1 gear ratio. The motor has a full load current of 2 A and features a TENV (Totally Enclosed Non-Ventilated) enclosure.
Technical Specifications
| Parameter | Value |
|---|---|
| DC | 90V |
| Type | TENV, 125 RPM, 100 in-lb Max Torque, 22.67:1 |
| Brand | LEESON |
| Motor Type | Permanent Magnet DC |
| Full Load Current | 2 A |
| Manufacturer Part Number | M1135111.00 |
