Leeson 3G-OTH-54652 — Technical Specifications

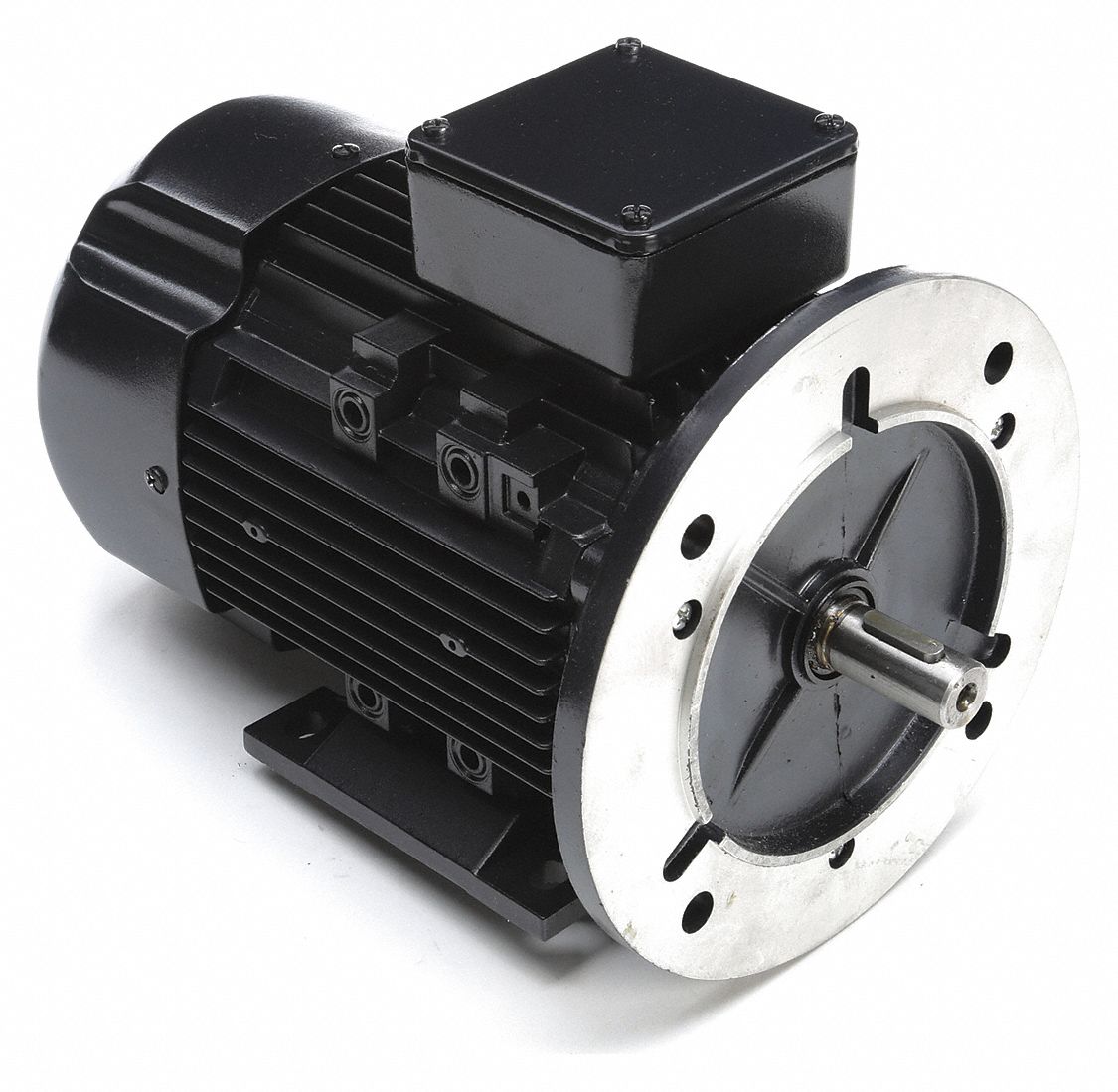

The LEESON Metric Motor: 1 hp is a C-Face with Rigid Base 3-Phase IEC Metric General Purpose AC Motor (SKU 53UF68). It features a TEFC enclosure, nameplate RPM of 1740 RPM at 60 Hz, and full load amps of 3.0/1.5 A at 230/460V AC. This motor is designed for general-purpose industrial applications requiring a compact metric frame.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | C-Face/Rigid Base Mount, Totally Enclosed Fan Cooled |
| Brand | LEESON |
| Frame Size | 80D |
| Motor Enclosure | TEFC |
| Nameplate RPM @ 60 Hz | 1740 RPM |
| Full Load Amps @ 60 Hz | 3.0/1.5 A |
| Manufacturer Part Number | 080T17FH15514 |
| Nameplate Voltage @ 60 Hz | 230/460V AC |
