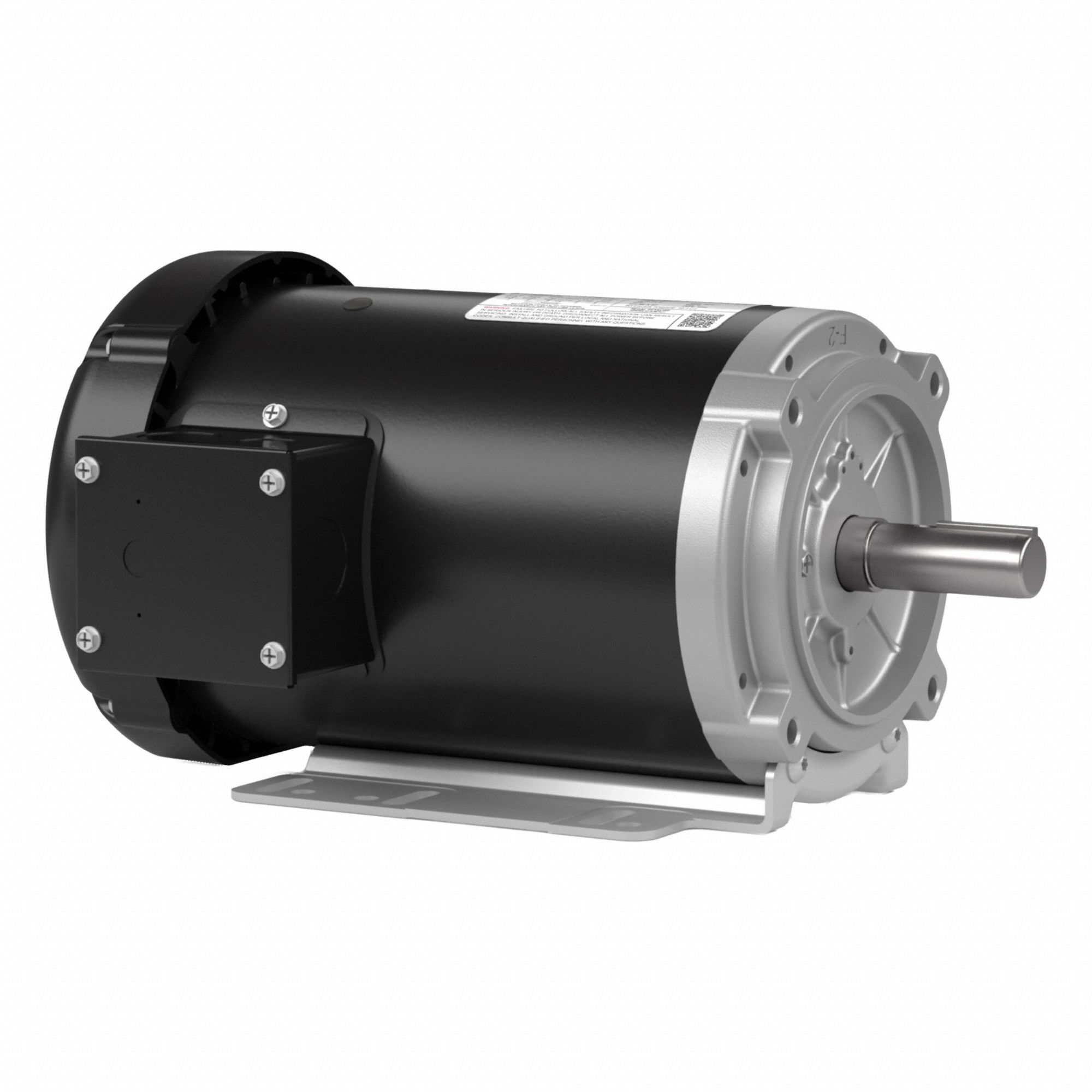

Leeson 3G-OTH-55186 — Technical Specifications

Name: Leeson 3G-OTH-55186 LEESON General Purpose 3 Phase: Universal Mount, Totally Enclosed Fan Cooled, 2 hp, 208-230/460V AC (MPN 145TTFR16201). Key specifications — Brand: LEESON; Nameplate Voltage @ 60 Hz: 208-230/460V AC; Full Load Current @ 60 Hz: 5.6-5.0/2.5 A; Nameplate RPM @ 60 Hz: 3,500 RPM; Motor Enclosure: TEFC.
Brand: Leeson

The LEESON General Purpose 3 Phase: Universal Mount is a TEFC (Totally Enclosed Fan Cooled) AC motor rated at 2 hp with a nameplate RPM of 3,500 RPM at 60 Hz. It operates on 208-230/460V AC and draws a full load current of 5.6-5.0/2.5 A at 60 Hz. This universal mount motor is designed for general-purpose three-phase applications.

View Product & Quote

Technical Specifications

Parameter	Value
AC	208-230/460V
Type	Totally Enclosed Fan Cooled, 2 hp
Brand	LEESON
Motor Enclosure	TEFC
Nameplate RPM @ 60 Hz	3,500 RPM
Manufacturer Part Number	145TTFR16201
Full Load Current @ 60 Hz	5.6-5.0/2.5 A
Nameplate Voltage @ 60 Hz	208-230/460V AC
