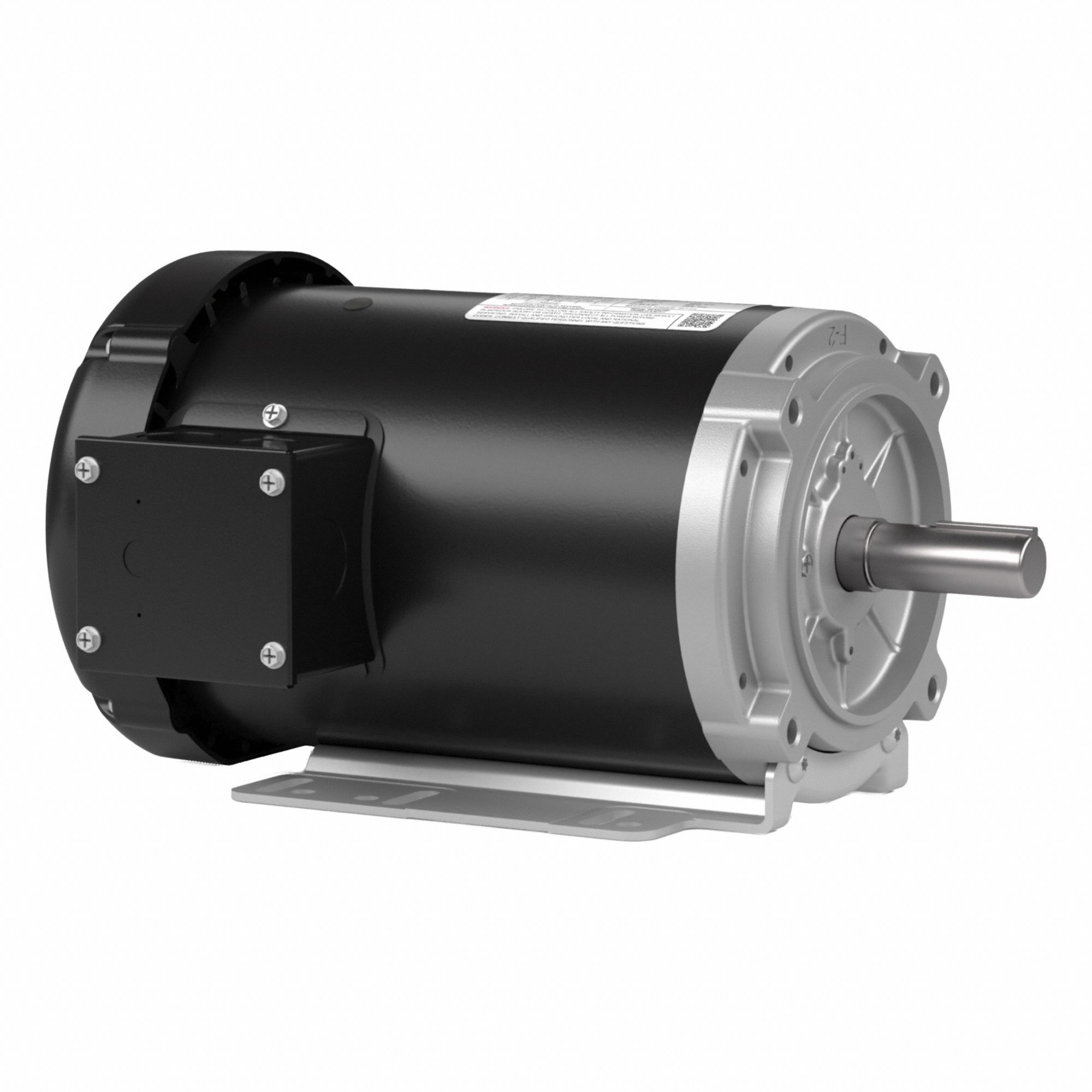

Leeson 3G-OTH-55176 — Technical Specifications
The LEESON General Purpose 3 Phase: Universal Mount is a TEFC (Totally Enclosed Fan Cooled) 3 hp AC motor with a 3,450 RPM nameplate speed at 60 Hz. It operates on 208-230/460V AC and draws a full load current of 8.2-7.6/3.8 A at 60 Hz. This universal mount motor is designed for general-purpose three-phase applications.
Technical Specifications
| Parameter | Value |
|---|---|
| AC | 208-230/460V |
| Type | Totally Enclosed Fan Cooled, 3 hp |
| Brand | LEESON |
| Motor Enclosure | TEFC |
| Nameplate RPM @ 60 Hz | 3,450 RPM |
| Manufacturer Part Number | 145TTFR16203 |
| Full Load Current @ 60 Hz | 8.2-7.6/3.8 A |
| Nameplate Voltage @ 60 Hz | 208-230/460V AC |
