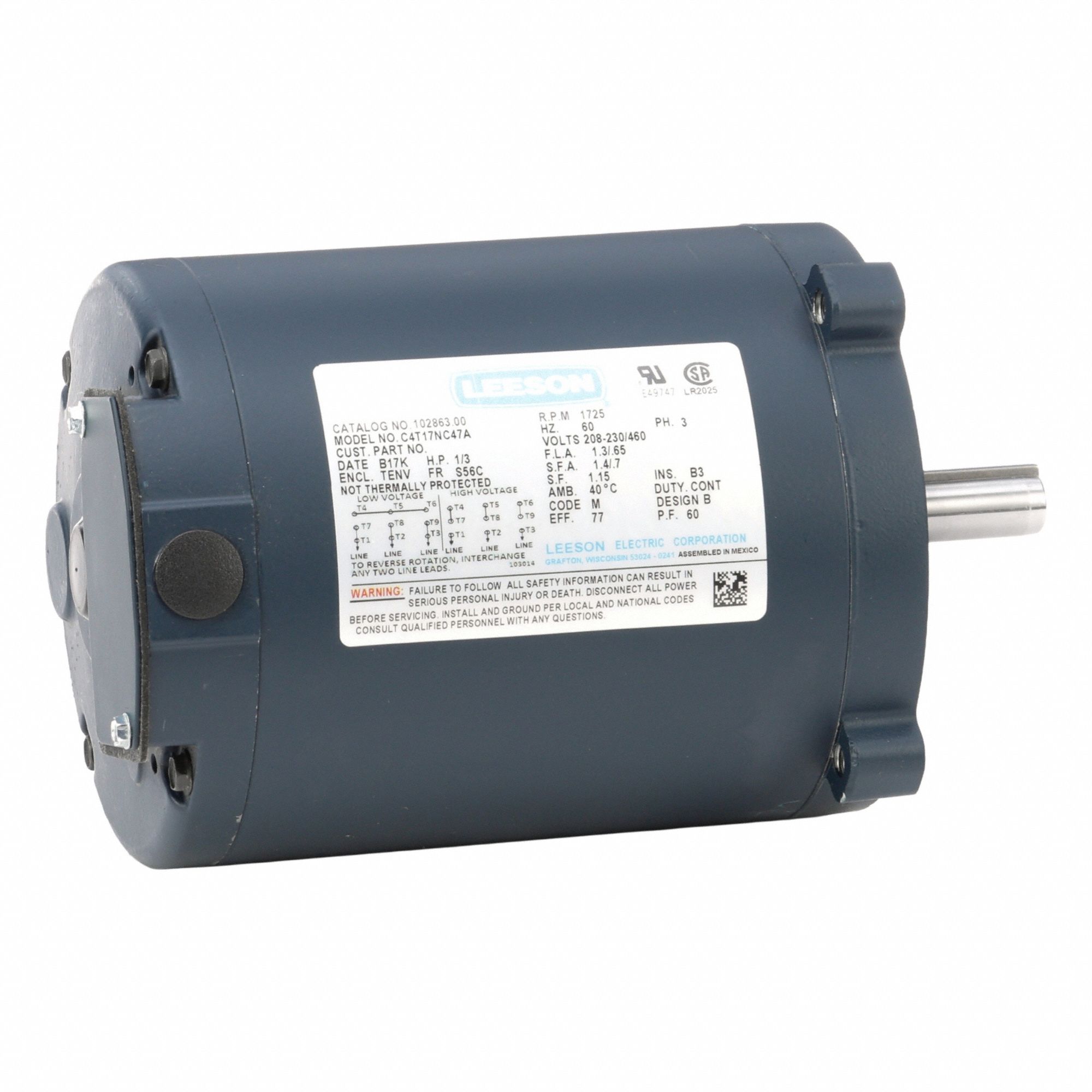

Leeson 3G-OTH-60706 — Technical Specifications
The LEESON General Purpose: C-Face Mount is a C-Face 3-Phase General Purpose AC Motor with a Totally Enclosed Non-Ventilated (TENV) enclosure. It operates at 1,725 RPM at 60 Hz and is rated for 230/460V AC with a full load current of 1.3/0.65 A at 60 Hz. This motor is designed for general-purpose industrial applications requiring a C-face mounting configuration.
Technical Specifications
| Parameter | Value |
|---|---|
| AC | 230/460V |
| Type | Totally Enclosed Non-Ventilated, 1/3 hp |
| Brand | LEESON |
| Motor Enclosure | TENV |
| Nameplate RPM @ 60 Hz | 1,725 RPM |
| Manufacturer Part Number | 102863.00 |
| Full Load Current @ 60 Hz | 1.3/0.65 A |
| Nameplate Voltage @ 60 Hz | 230/460V AC |
