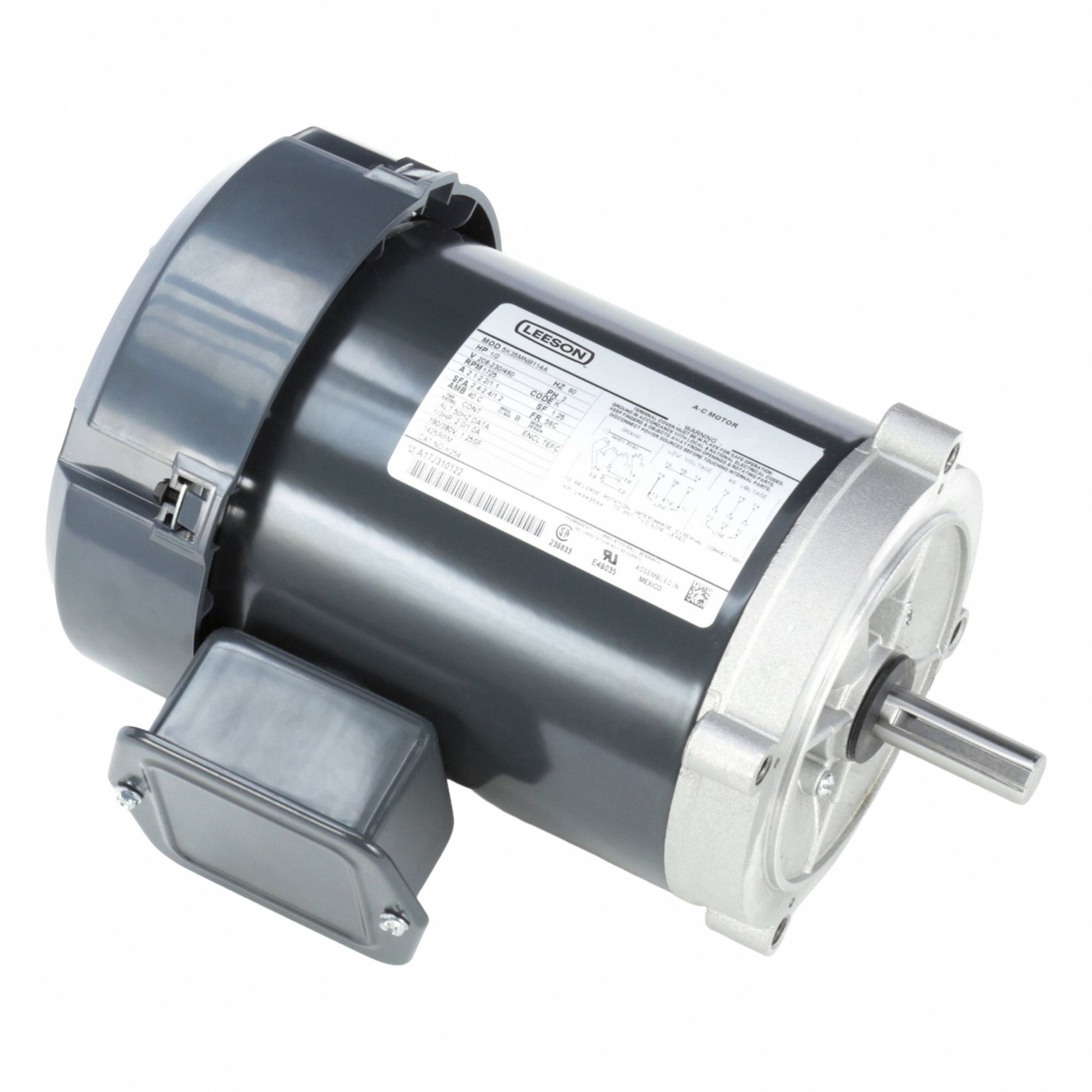

Leeson 3G-OTH-60672 — Technical Specifications

Name: Leeson 3G-OTH-60672 LEESON General Purpose: C-Face Mount, Totally Enclosed Fan Cooled, 1/2 hp, 208-230/460V AC (MPN 5K35MNB114). Key specifications — Brand: LEESON; Nameplate Voltage @ 60 Hz: 208-230/460V AC; Full Load Current @ 60 Hz: 2.1-2.2/1.1 A; Nameplate RPM @ 60 Hz: 1,725 RPM; Motor Enclosure: TEFC.
Brand: Leeson

The LEESON General Purpose: C-Face Mount is a C-Face 3-Phase General Purpose AC Motor with a TEFC enclosure. It operates at 1,725 RPM at 60 Hz and is rated for 208-230/460V AC with a full load current of 2.1-2.2/1.1 A at 60 Hz. This motor is identified by manufacturer part number 5K35MNB114.

View Product & Quote

Technical Specifications

Parameter	Value
AC	208-230/460V
Type	Totally Enclosed Fan Cooled, 1/2 hp
Brand	LEESON
Motor Enclosure	TEFC
Nameplate RPM @ 60 Hz	1,725 RPM
Manufacturer Part Number	5K35MNB114
Full Load Current @ 60 Hz	2.1-2.2/1.1 A
Nameplate Voltage @ 60 Hz	208-230/460V AC
