Leeson 3G-OTH-54610 — Technical Specifications

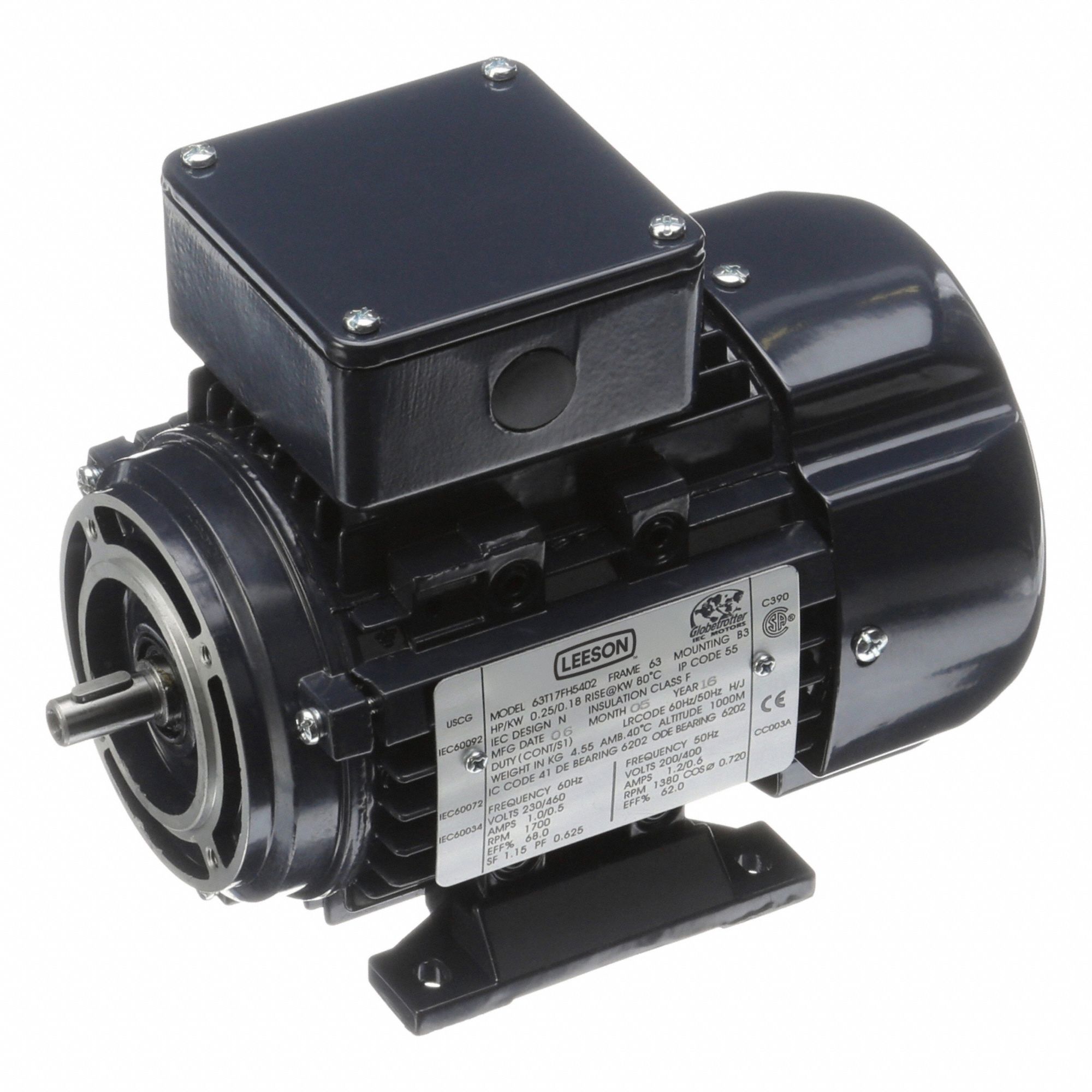

The LEESON Metric Motor is a 1/4 hp C-Face with Rigid Base 3-Phase IEC Metric General Purpose AC Motor. It features a TEFC enclosure, 1,800 RPM nameplate speed at 60 Hz, and full load amps of 1.0/0.50 A at 230/460V AC. This motor is designed for industrial applications requiring a compact, metric-frame solution.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | C-Face/Rigid Base Mount, Totally Enclosed Fan Cooled |
| Brand | LEESON |
| Frame Size | 63C |
| Motor Enclosure | TEFC |
| Nameplate RPM @ 60 Hz | 1,800 RPM |
| Full Load Amps @ 60 Hz | 1.0/0.50 A |
| Manufacturer Part Number | 063T17FH5402 |
| Nameplate Voltage @ 60 Hz | 230/460V AC |
