Leeson 3G-OTH-56176 — Technical Specifications

Name: Leeson 3G-OTH-56176 LEESON Metric Motor: 3 hp, Rigid Base Mount, 90L Frame Size, Totally Enclosed Fan Cooled, 3500 RPM (MPN 090LT34FH6301). Key specifications — Brand: LEESON; Nameplate Voltage @ 60 Hz: 230/460V AC; Full Load Amps @ 60 Hz: 7.2/3.6 A; Nameplate RPM @ 60 Hz: 3500 RPM; Motor Enclosure: TEFC.
Brand: Leeson

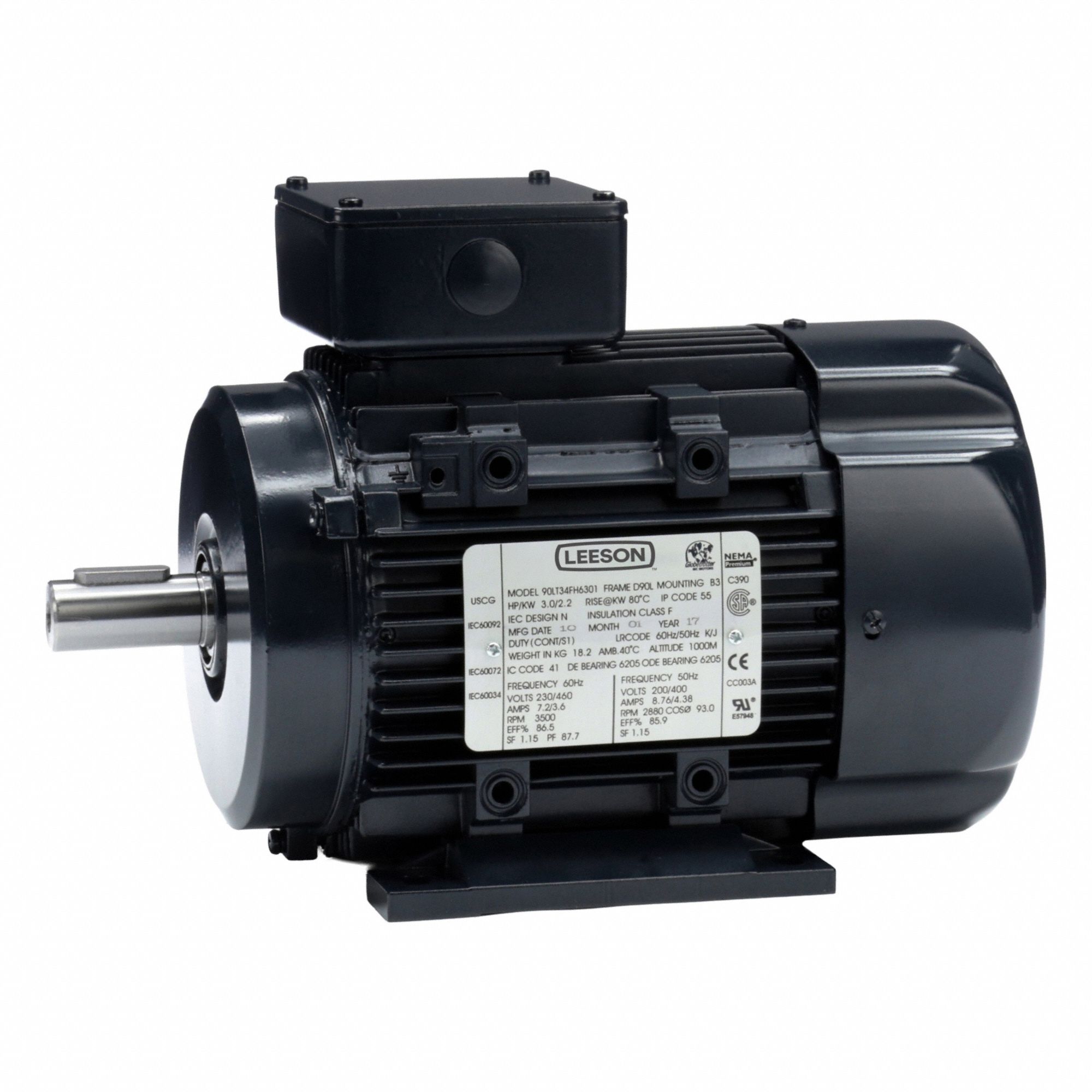

The LEESON Metric Motor is a 3 hp Rigid Base 3-Phase IEC Metric General Purpose AC Motor with a TEFC enclosure. It operates at 3500 RPM at 60 Hz and draws 7.2/3.6 A full load amps at 230/460V AC. This motor features a 90L frame size and is identified by manufacturer part number 090LT34FH6301.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Rigid Base Mount, Totally Enclosed Fan Cooled, 3500 RPM
Brand	LEESON
Frame Size	90L
Motor Enclosure	TEFC
Nameplate RPM @ 60 Hz	3500 RPM
Full Load Amps @ 60 Hz	7.2/3.6 A
Manufacturer Part Number	090LT34FH6301
Nameplate Voltage @ 60 Hz	230/460V AC
