Leeson 3G-OTH-55836 — Technical Specifications

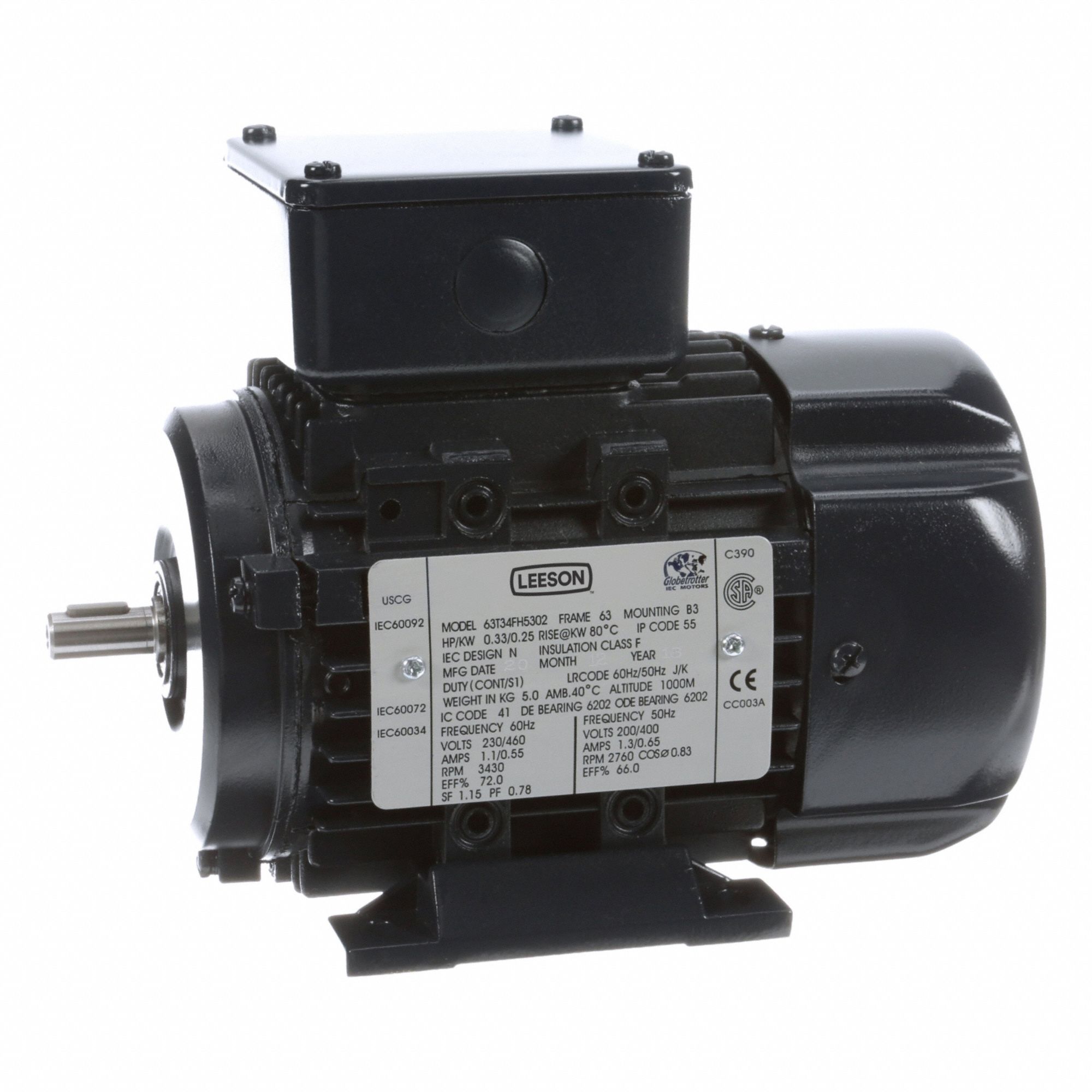

The LEESON Metric Motor (SKU 24ME10) is a 1/3 hp Rigid Base 3-Phase IEC Metric General Purpose AC Motor with a 63 Frame Size. It features a TEFC enclosure, a nameplate RPM of 3430 RPM at 60 Hz, and full load amps of 1.1/0.55 A at 230/460V AC (MPN 063T34FH5302).
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Rigid Base Mount, Totally Enclosed Fan Cooled, 3430 RPM |
| Brand | LEESON |
| Frame Size | 63 |
| Motor Enclosure | TEFC |
| Nameplate RPM @ 60 Hz | 3430 RPM |
| Full Load Amps @ 60 Hz | 1.1/0.55 A |
| Manufacturer Part Number | 063T34FH5302 |
| Nameplate Voltage @ 60 Hz | 230/460V AC |
