Kohler 3G-OTH-385595 — Technical Specifications

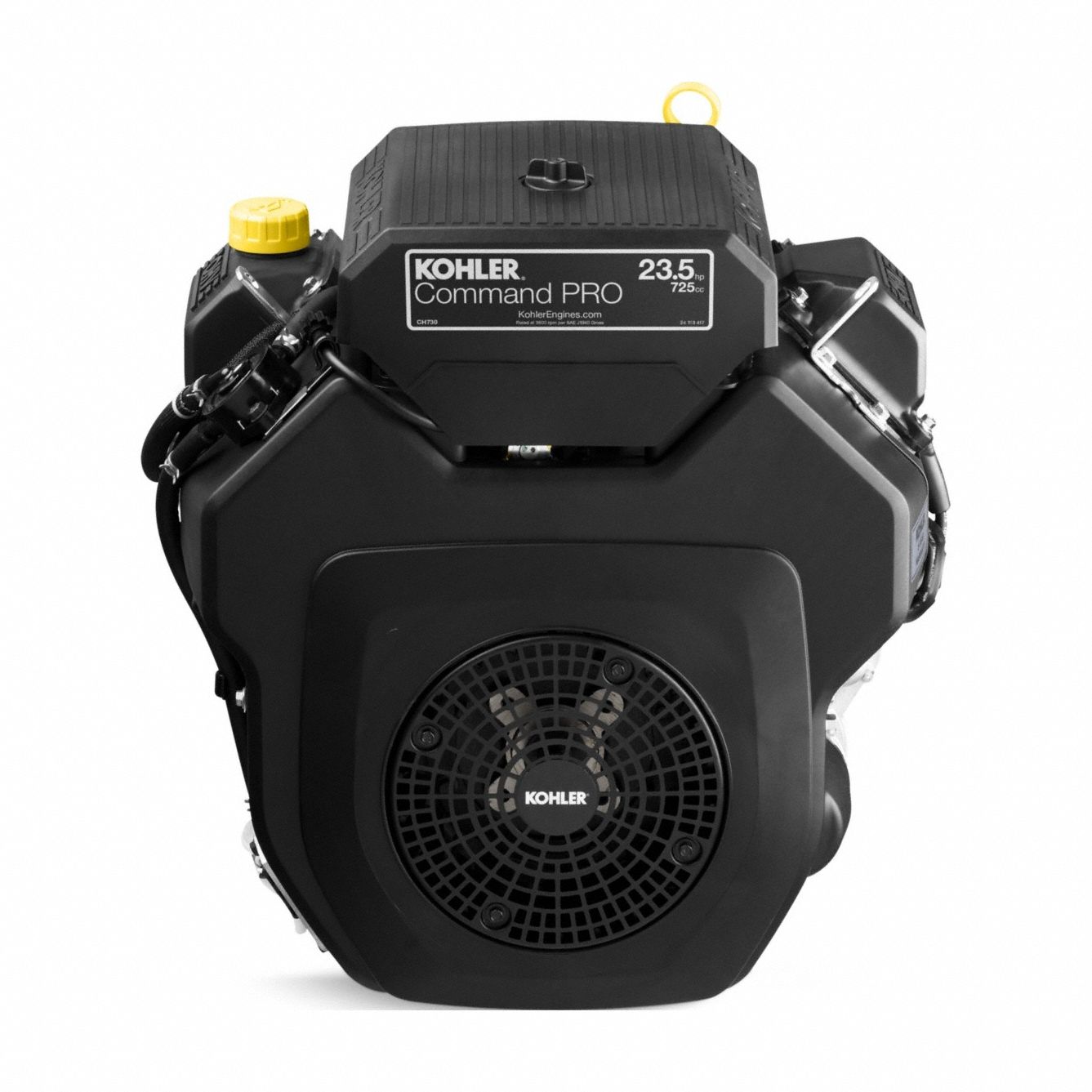

The KOHLER CH730 Series Gasoline Engine (MPN PA-CH730-3010) is a horizontal-shaft engine delivering 23.5 hp and 38.4 lb-ft gross torque. It features electric start and a 1.437-inch diameter shaft with a 4.453-inch length, .375 keyway, and 7/16-14 tapped depth of .83 inches. This engine is supplied without a muffler.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | 38.4 lb-ft Gross Torque, Horizontal |
| Muffler | No |
| Horsepower | 23.5 hp |
| Start Type | Electric |
| Shaft Diameter | 1.437 in |
| Shaft Configuration | 1.437" Diameter x 4.453" length.375 Keyway drilled and tapped7/16 - 14 x .83" Deep |
| Manufacturer Part Number | PA-CH730-3010 |
