Kerick 3G-OTH-436102 — Technical Specifications

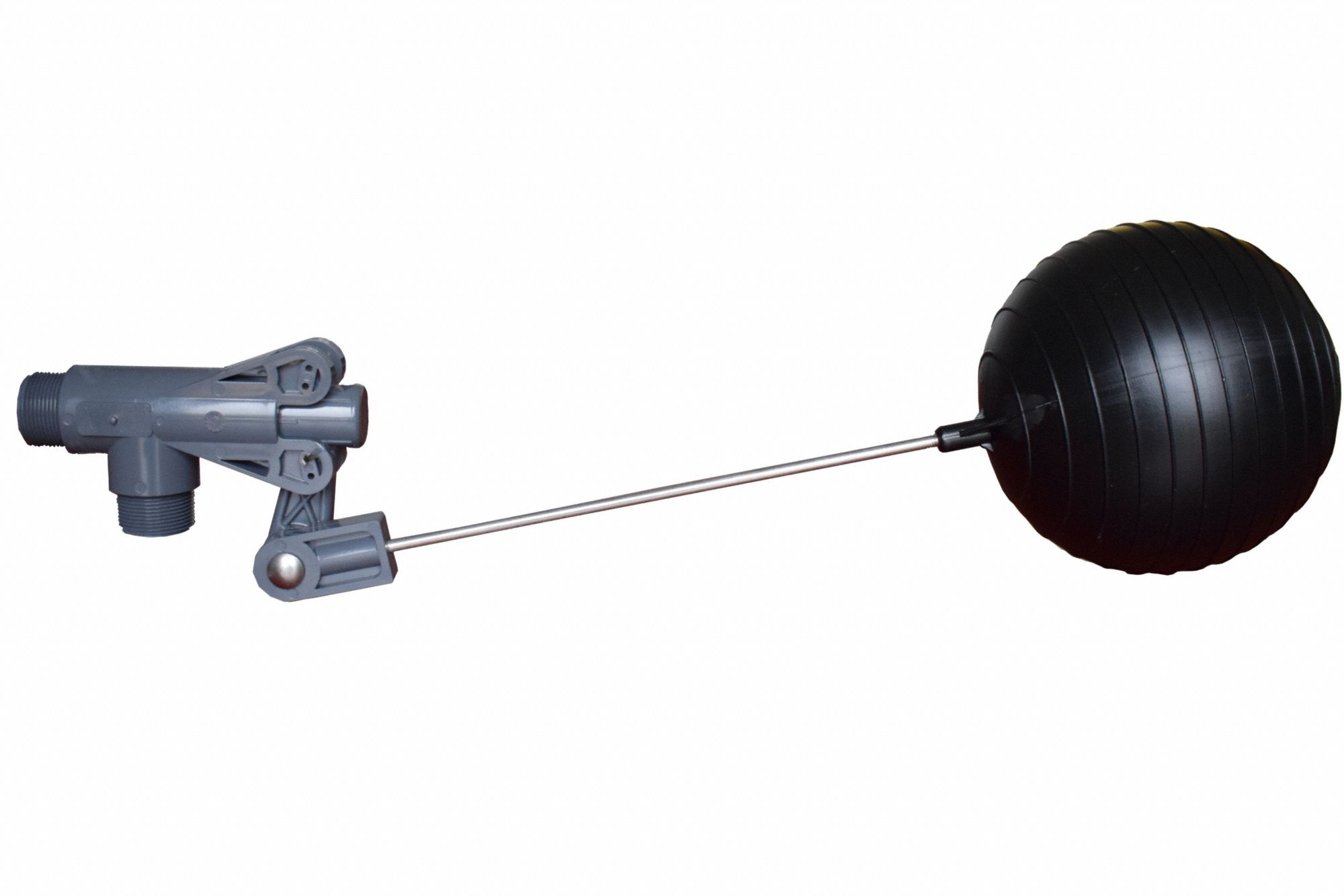

The KERICK Float Valve Assembly (MPN PS125SS-5) is a food grade and sanitary float valve assembly for water media, featuring an angle valve body with adjustable arm and horizontal piping mounting. It includes a float and rod with a 5/16"-18 rod thread, Santoprene rubber seal, and male NPT inlet and outlet connections. The assembly is rated for a flow rate of 145 gpm @ 50 psi and complies with NSF 61 and Standard 169.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Angle Valve Body, Cylindrical, Horizontal Piping, PVC |
| Brand | KERICK |
| Mounting | Horizontal Piping |
| Flow Rate | 145 gpm @ 50 psi |
| For Media | Water |
| Standards | Standard 169 |
| Rod Thread | 5/16"-18 |
| Seal Material | Santoprene Rubber |
| Float Valve Type | Float Valve Assembly (Rod & Float Included) |
| Valve Body Style | Angle |
| Arm Adjustability | Adjustable |
| Inlet Connection Type | MNPT |
| Includes Float And Rod | Float and Rod Included |
| Outlet Connection Type | MNPT |
| Connection Type - Side 1 | NPT |
| Connection Type - Side 2 | NPT |
| Manufacturer Part Number | PS125SS-5 |
| Connection Gender - Side 1 | Male |
| Connection Gender - Side 2 | Male |
| NSF Certifications For Food And Drinking Water | NSF 61 |
