Kerick 3G-OTH-436096 — Technical Specifications

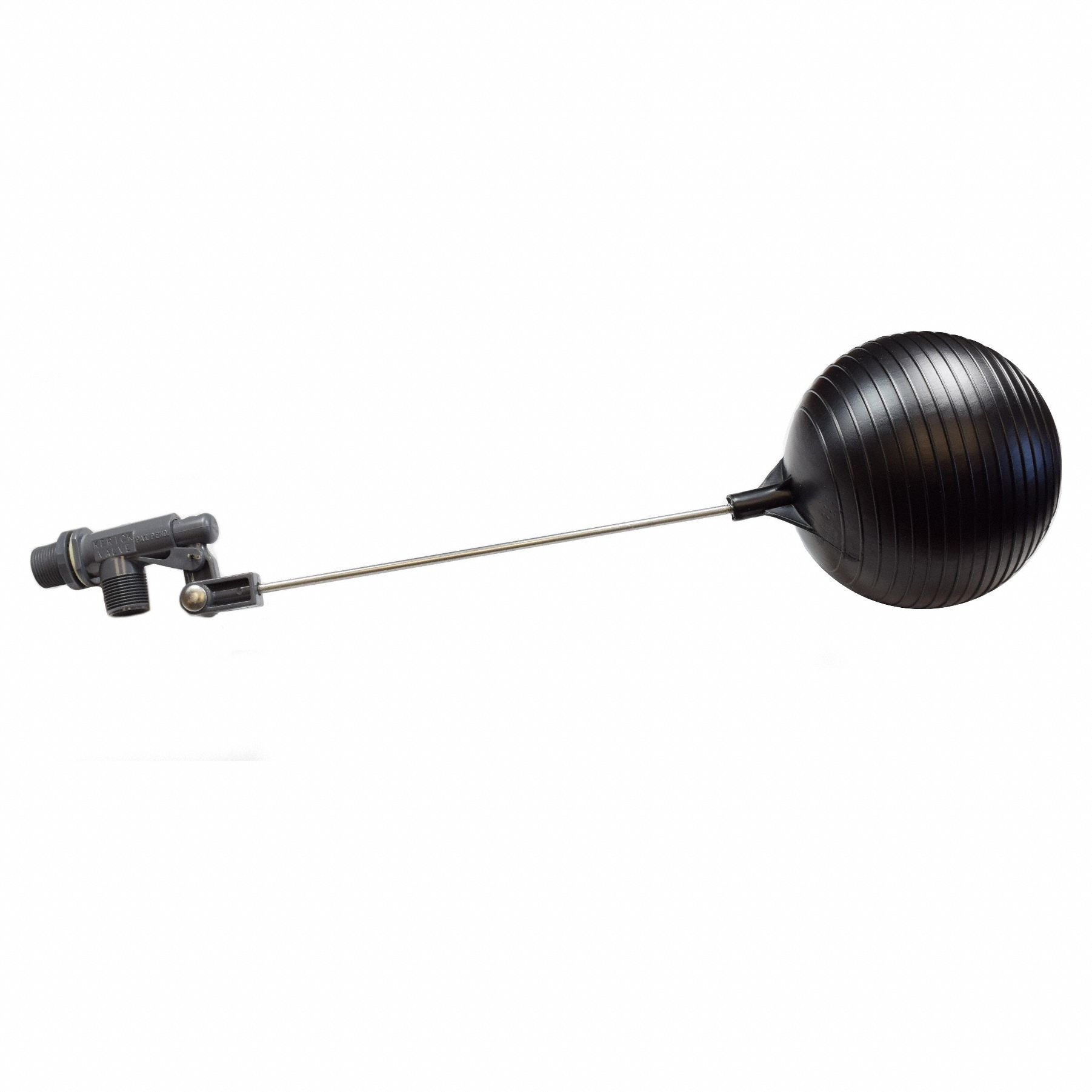

The KERICK Float Valve Assembly (SKU 803HJ6, MPN PT3838312-5) is a food grade and sanitary float valve assembly for water media, featuring an angle valve body with a bulkhead mounting and adjustable arm. It includes a rod and float, with 3/8" MNPT inlet and outlet connections (NPT, male both sides), a 1/4"-20 rod thread, and Santoprene rubber seal material. The assembly is rated for a flow rate of 15 gpm @ 60 psi and complies with NSF 61 and Standard 169.
Technical Specifications
| Parameter | Value |
|---|---|
| MNPT | 3/8 in |
| Type | Angle Valve Body, Cylindrical, Bulkhead |
| Brand | KERICK |
| Mounting | Bulkhead |
| Flow Rate | 15 gpm @ 60 psi |
| For Media | Water |
| Standards | Standard 169 |
| Rod Thread | 1/4"-20 |
| Seal Material | Santoprene Rubber |
| Float Valve Type | Float Valve Assembly (Rod & Float Included) |
| Valve Body Style | Angle |
| Arm Adjustability | Adjustable |
| Inlet Connection Type | MNPT |
| Includes Float And Rod | Float and Rod Included |
| Outlet Connection Type | MNPT |
| Connection Type - Side 1 | NPT |
| Connection Type - Side 2 | NPT |
| Manufacturer Part Number | PT3838312-5 |
| Connection Gender - Side 1 | Male |
| Connection Gender - Side 2 | Male |
| NSF Certifications For Food And Drinking Water | NSF 61 |
