Jw Winco 3G-OTH-522355 — Technical Specifications

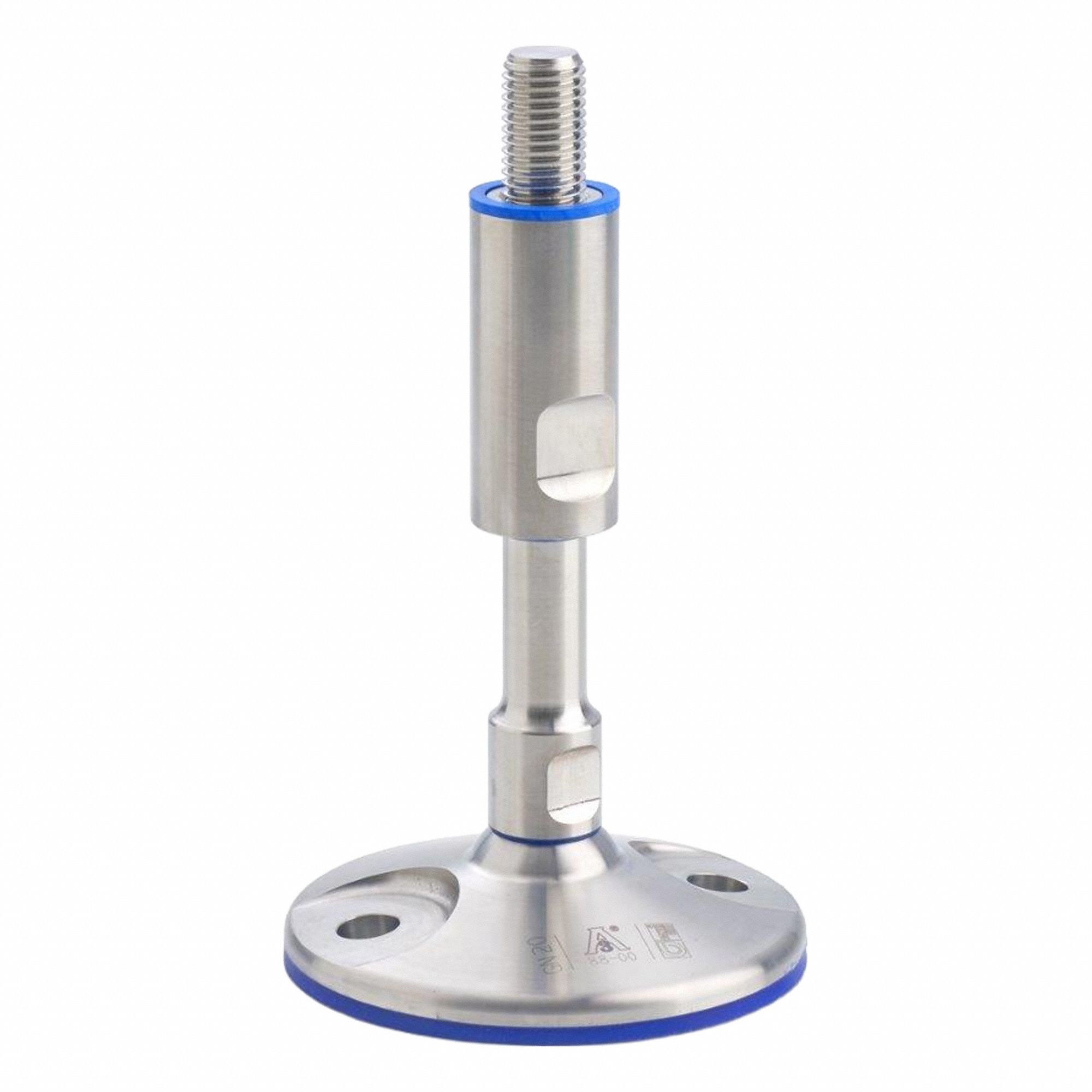

The JW WINCO Male-End Leveling Mount: Swiveling Stud is a hygienic male leveling mount with an M16 thread size, 120 mm length, and 30 kN capacity. It features a round base, mounting holes, and an adjustable sleeve with an FDA-compliant wiper and sealing ring, with an 18 mm hex size (joint).
Technical Specifications
| Parameter | Value |
|---|---|
| Type | M16 Thread Size, 120 mm |
| Capacity | 30 kN |
| Hex Size | 18 mm (Joint) |
| Includes | Adjustable Sleeve with FDA-Compliant Wiper and Sealing Ring |
| Base Shape | Round |
| Load Capacity | 30 kN |
| Mounting Holes | Mounting Holes Included |
| Manufacturer Part Number | 20-120-M16-225-B |
