Jw Winco 3G-OTH-522244 — Technical Specifications

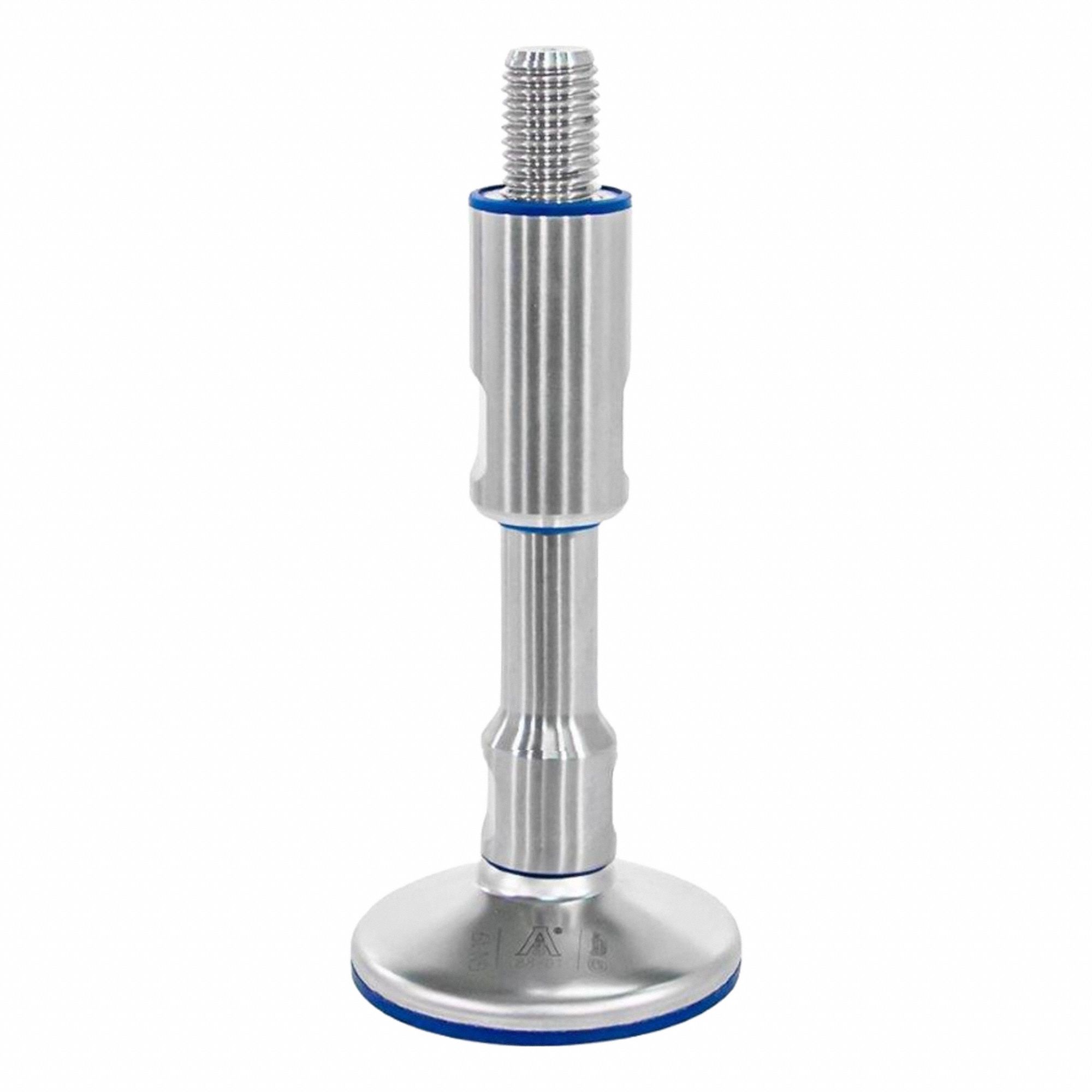

The JW WINCO Male-End Leveling Mount is a hygienic male leveling mount with a swiveling stud, M16 thread size, and 100 mm length. It has a round base, a 22 kN load capacity, and includes an adjustable sleeve with an FDA-compliant wiper and sealing ring. The joint hex size is 18 mm; mounting holes are not included.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | M16 Thread Size, 100 mm |
| Capacity | 22 kN |
| Hex Size | 18 mm (Joint) |
| Includes | Adjustable Sleeve with FDA-Compliant Wiper and Sealing Ring |
| Base Shape | Round |
| Load Capacity | 22 kN |
| Mounting Holes | Mounting Holes Not Included |
| Manufacturer Part Number | 19-100-M16-175-A |
