Jw Winco 3G-OTH-522239 — Technical Specifications

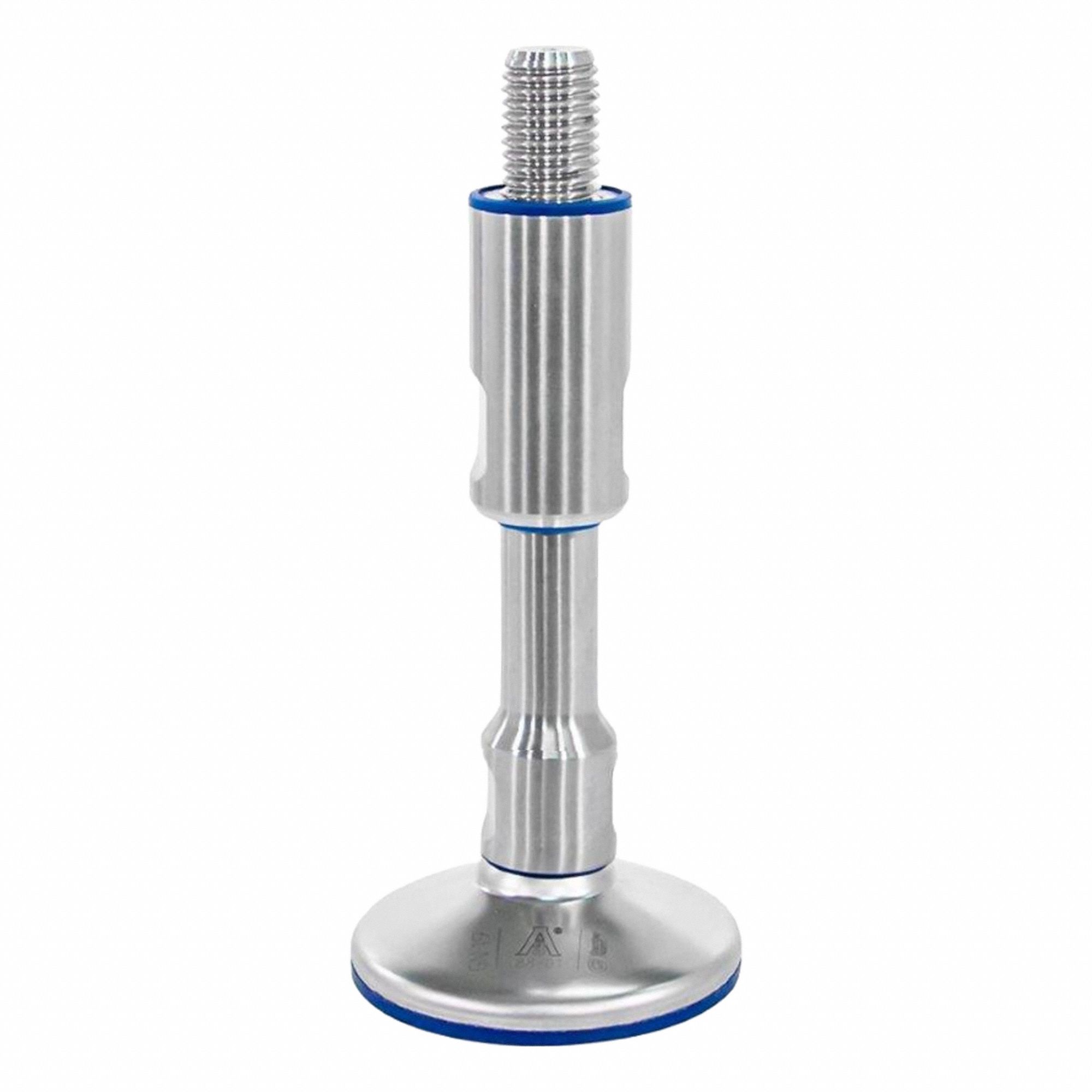

The JW WINCO Male-End Leveling Mount: Swiveling Stud is a hygienic male leveling mount with an M12 thread size, 80 mm length, and 15 kN capacity. It features a round base, a 19 mm sleeve hex size, and includes an adjustable sleeve with an FDA-compliant wiper and sealing ring. Mounting holes are not included.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | M12 Thread Size, 80 mm |
| Capacity | 15 kN |
| Hex Size | 19 mm (Sleeve) |
| Includes | Adjustable Sleeve with FDA-Compliant Wiper and Sealing Ring |
| Base Shape | Round |
| Load Capacity | 15 kN |
| Mounting Holes | Mounting Holes Not Included |
| Manufacturer Part Number | 19-80-M12-225-A |
